Operating Instruction and Documentation
MCS 5500 ND WIRELESS
- 22 -

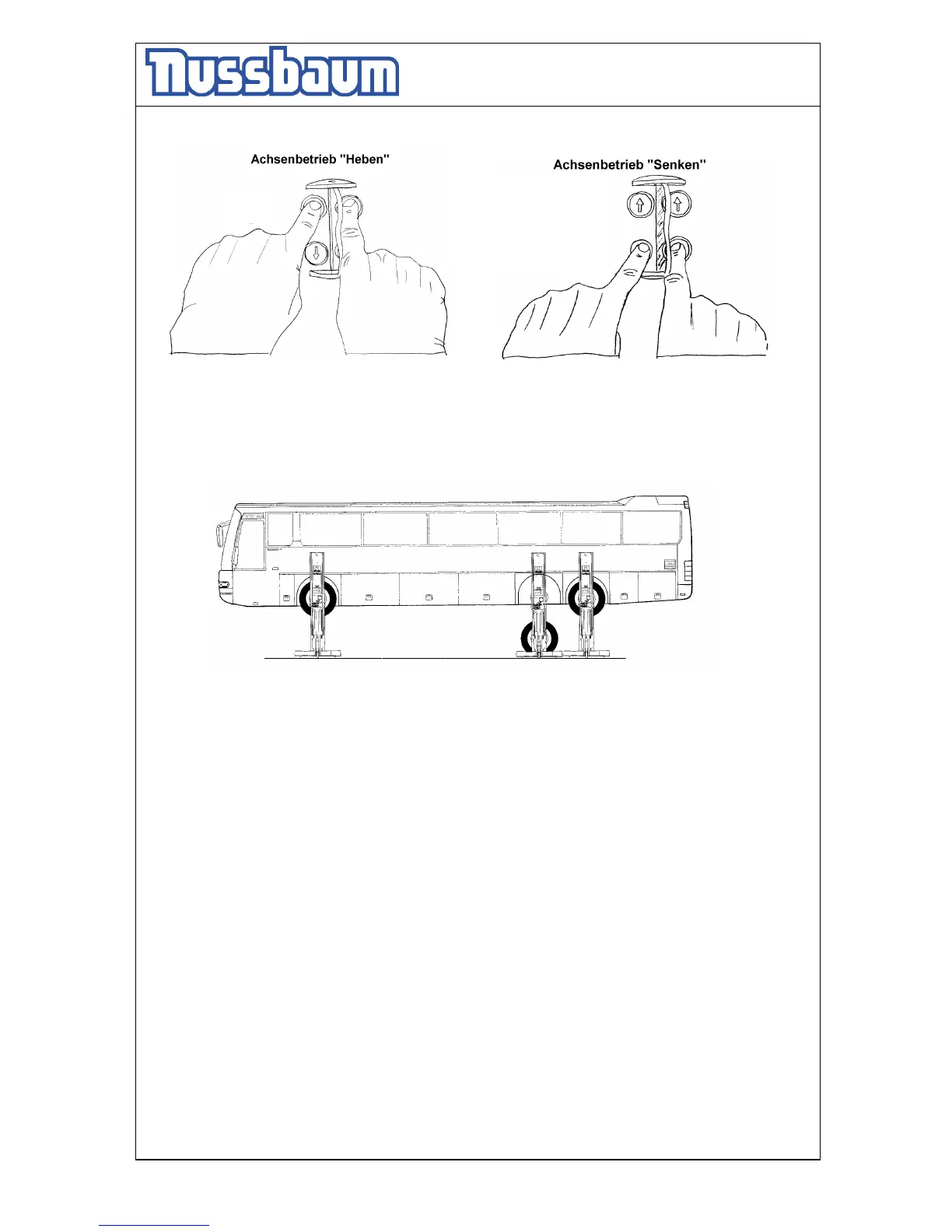

pic 14:axle-mode “lifting” pic 15: axle-mode “lowering”
The axle-mode is not possible (example: interrupt through an obstacle, deviation more than ± 100
mm) when the photoelectric are not recognized.
pic 16:
• Check the dangerous places of the lift and be sure that there are no objects or people in
the immediate area of the lift or on the lift.
• Lower the axle on the working height or the lowest position.
Press both buttons “lowering” at one operating unit of MCS, at you are standing. The
MCS raises a little bit (unlocking the safety device), before the lowering starts.
• Raise the vehicle on the working height.
• Observe the complete process.
• Raise the axle on the working height.
Press both buttons “lifting” at one operating unit of MCS, at you are standing.
5.8 Equalisation of the MCS
• The MCS are adjusting automatically during lifting and lowering.
First, lower the MCS always into the lowest position, this is the prerequisite for a trouble-
free work. In this position the complete system will be reset.
