Operating Instruction and Documentation
Sprinter Mobil 3000
- 29 -
Choice of the dowel length without floor pavement or tile surface

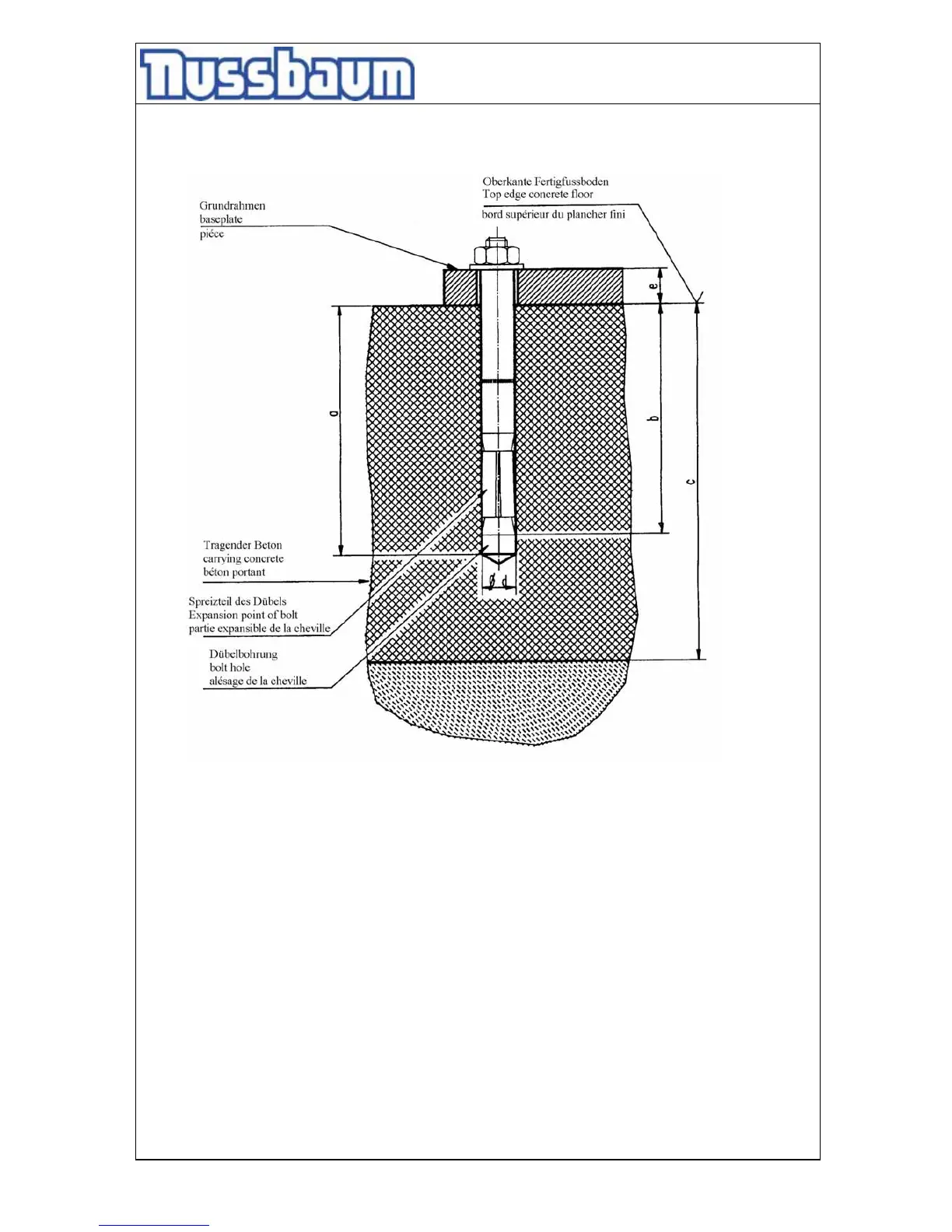

Table to pic.
Liebig-dowels
Dowel type BM10-/70/40
Drilling depth a 85
Min. anchorage depth b 70
Thickness of concrete c min.140
Diameter of bore d 15
Thickness of the lift-pieces e 0-40
Number of dowels 8
Starting torque 40
(*) minimum thickness of concrete by using the mentioned dowels. Otherwise,
observe the regulation of the foundation plan.
You can use equivalent dowels from another dowel manufacturer (with license) but
observe their regulation.
