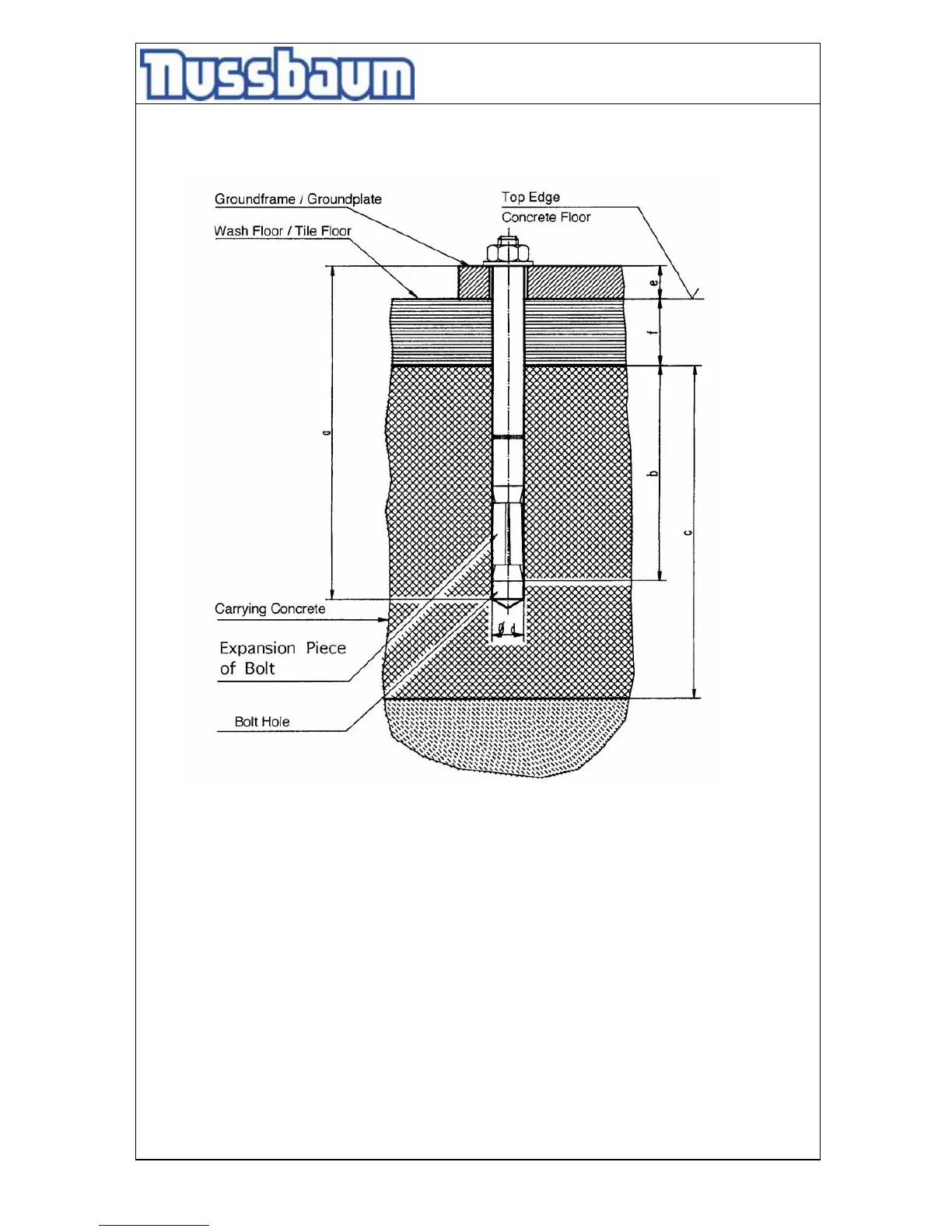

Choice of the dowel length with floor pavement or tile surface
Table to pic.
Liebig-dowels
Dowel type BM10-15/70/65 BM10-15/0/100 BM10-15/70/140
Drilling depth (mm) a 85 85 85
Min. anchorage depth (mm) b 70 70 70
Thickness of concrete (mm) c min.140(*) min.140(*) min.140(*)
Diameter of bore (mm) d 15 15 15
Thickness of the lift-pieces (mm) e 40-65 65-100 100-140
Number of dowels x x x
Starting torque (Nm) 40 Nm 40Nm 40Nm
(*) minimum thickness of concrete by using the mentioned dowels. Otherwise,
observe the regulation of the foundation plan.
You can use equivalent dowels from another dowel manufacturer (with license) but
observe their regulation.
