INSTALLING THE NC300 CD CHANGER
Connect the audio cables to the audio jacks of the NC300 player as
showninthegurebelow.Afterconnectingtheaudiocablesand
maincable,connectthepowercordfromtheNA200TAtransformer
to the power connector on the NC300 CD changer. Please refer to
the installation manual packed with the NC300 CD changer.
Ensuring that nothing is between the CD player and the back of the
rough-in(includingcables),placetheNC300playerintothelower
opening of the frames including the NF200C or NF100C frames.
Use the screws provided to secure the unit in place.
replaced. Place the remote station into the rough-in ring and
align the frame with the remote station. Use the screws provided
with the remote station to screw the remote station and frame
into place. The holes in the remote station align with the holes in
the mounting plate. The remote station keeps the plastic frame
in place on the wall.
Note that the plastic frames are paintable. Please prime the
plastic rst and then apply standard room paint. The white
plastic may require two coats of paint to get full coverage. It is
recommended that you paint the frame prior to mounting it to
the wall.
Important: Please label all cables at both ends.
Incorrectly connecting cables to the master, remote
stations or door stations could result in system
damage.
OUTDOOR REMOTE STATIONS
Do not remove the existing outdoor remote station rough-in.
TheNuTone retrot system isdesigned to t intothe existing
enclosure. It is important to note that the outdoor remote stations
are weather resistant not water proof. These stations should not
belocatedinanareathatisindirectlineofwaterfromsprinklers,
rain or other devices such as power washers.
Please use the NF300PWH frame in outdoor and high sun areas.
The NF300PWH plastic is designed to withstand sun and resist
fading.Ifapatiorequiresasurfacemountapplication,usethe
NRKS200PWH. This is a surface mount box and cover that will
support the NPS200WH, NPS103WH or NPS104WH outdoor
remote stations.
To install an outdoor remote station follow the instructions
presented earlier for indoor remote stations.
DOOR STATIONS
Remove the old door station but do not remove the rough-in
box or surface mount box. When replacing a NuTone door
station you must use the NF300DWH mounting frame. The
M&SdoorstationsetsintheNF300DWHframeandthescrews
attach to the existing rough-in. Connect the door station with
the corresponding color wires. Screw the door station or door
station with NF300DWH frame into the rough-in box.
EXTERNAL MUSIC SOURCE
TheNM100retrotsystemsupportstheuseofexternalmusic
sources. You can use an existing connection or run a new wire
to support local source connection. To install a new local source
follow the steps detailed in the following paragraphs.
Choose a location for the IA30WH audio wall plate that will be
easily accessible to the sources that are to be connected to the
system(closetothereceiver,TVorDVDplayerforexample).
Note: the external source wire run to the NM100 must not
exceed 50 feet.
At this location, attach a single gang box included in the
IR30K rough-in to a wall stud at a center height of normal wall
outlets. Use a low voltage plaster ring in existing construction
installations.
Make sure the single gang box extends past the wall stud and
into the room so it will be ush with the sheetrock when it is
applied. Run the Red and Black shielded audio cables (included
in the IR30K) from the master unit location to the IA30WH audio
wall plate location. Connect the cables.

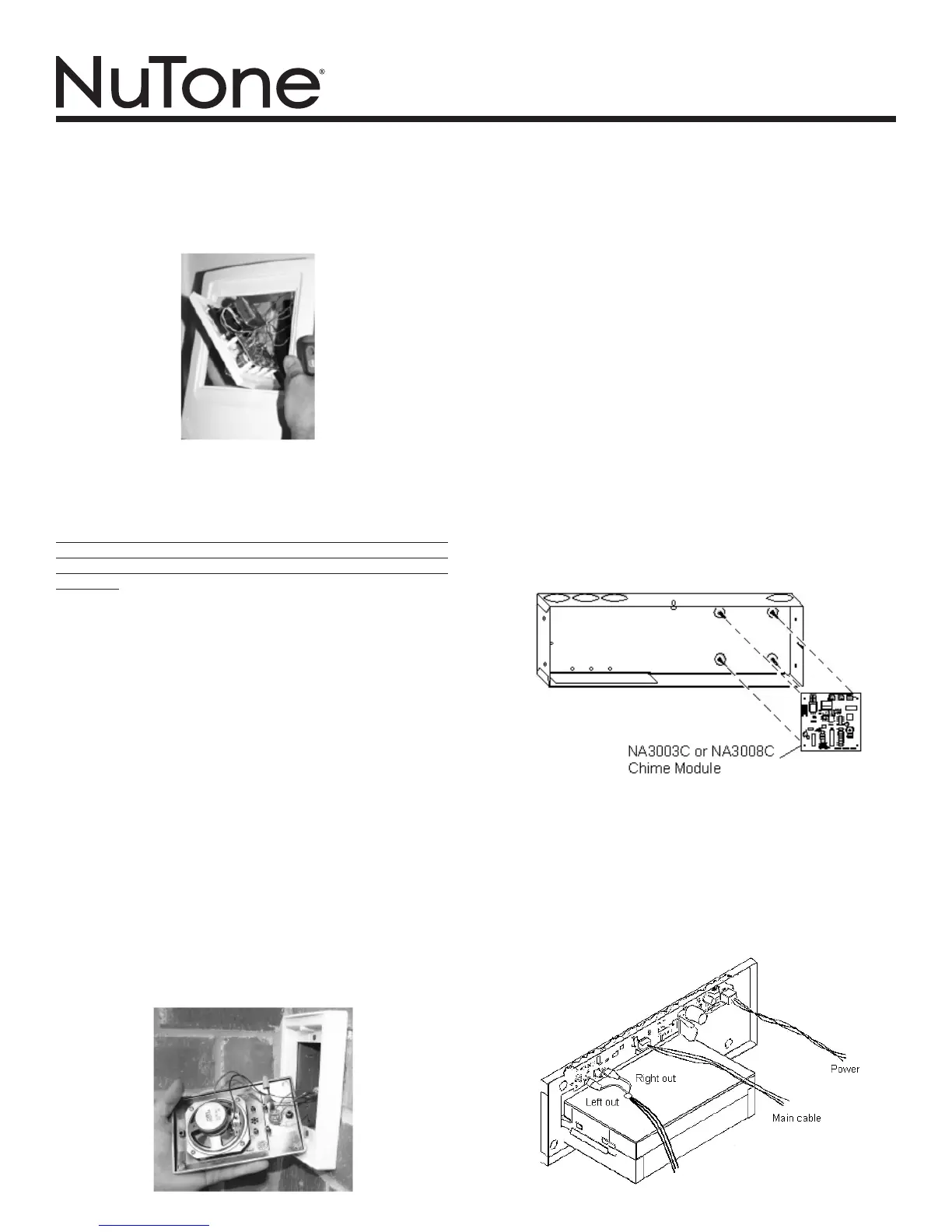

INSTALLING THE CHIME MODULE
Install the NA3003C or NA3008C optional chime module in the
rough-in by pressing the chime module over the 4 plastic standoffs
attachedtotherough-inasshowninthefollowinggure.Refer
to the instructions shipped with the chime module.

NuTone NM100WH Specifications

General

Supported radio bands	AM, FM
RMS rated power	30 W
Product color	White
Radio Data System (RDS)	Yes

Weight and Dimensions

Dimensions (WxDxH)	381 x 76 x 127 mm
