19

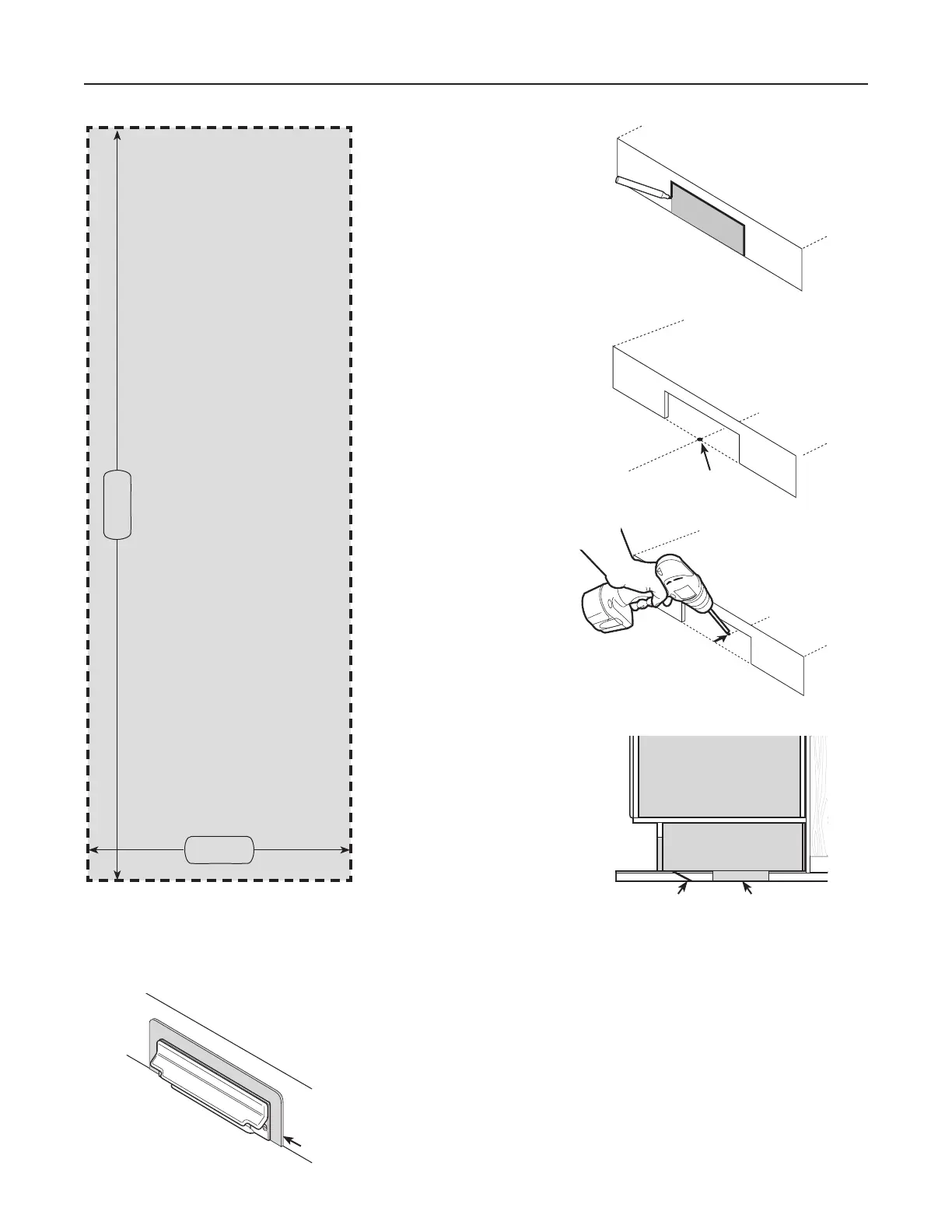

Template
Align the template
(cut from this
instruction sheet)
onto the kick plate to
the desired location,
and trace the outline
of the area.
Mark Center
Cut out the desired
opening and
discretely mark the
center of the
opening on the floor.
Drill a small
reference hole
along the
center line
behind the
kick plate
through the
subfloor.
Locate the
reference hole from
beneath the
subfloor. Cut a
4” x 4” access hole
on your chosen
position along the
center line under
the kick space.
Cabinet Space
Kick Space
Kick Plate
Opening
Reference
Hole
4" x 4" Access
Hole
CI377W CANSWEEP
®
TEMPLATE
6¾"
2"
If by any chance the opening was cut too big,
a trim plate (part number CI376W) is available
to provide a perfect cover.
Trim plate
CI377W CANSWEEP
®
UNDER CABINET INSTALLATION
