nvent JBS-100-A - Page 3

nVent.com | 3Raychem-IM-H56046-JBS100A100A6- ML-1805
1/4 in
(5 mm)
6 1/2 in
(165 mm)
BTV and QTVR
6 1/2 in
(165 mm)
XTV and KTV

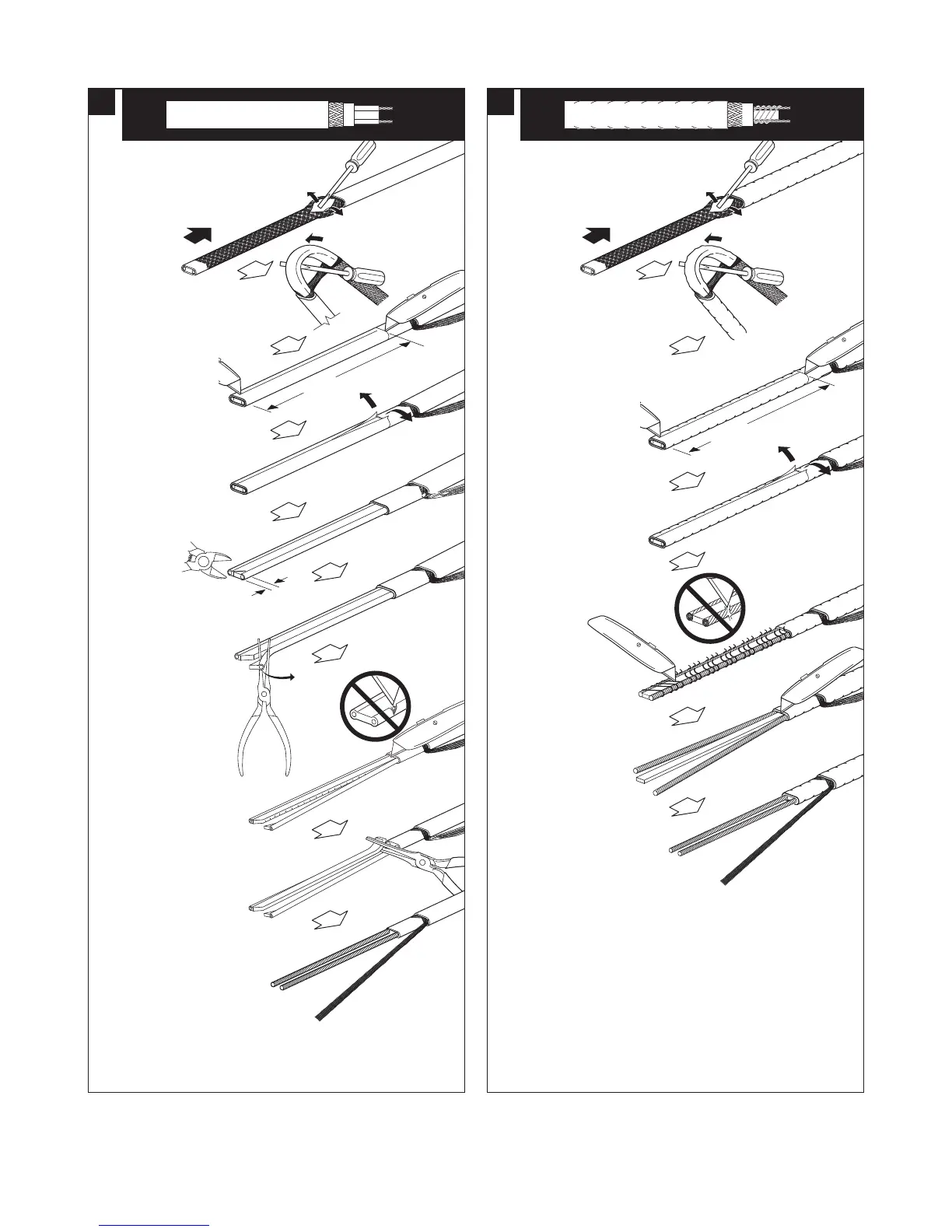

5B
• Push braid back to
create a pucker.
• At pucker use a screwdriver
to open braid.
• Bend heating cable and work
it through opening in braid.
• Lightly score inner
jacketaround and
down as shown.
• Peel off inner jacket.
• Notch core.
• Peel bus wire
fromcore.
• Score core between
buswires at inner
jacket.
• Bend and snap core.
• Peel core from bus wire.
• Remove any remaining core
material from bus wires.
• Pull braid tight to make
pigtail.
• Push braid back to create
a pucker.
• At pucker use a screwdriver
to open braid.
• Bend heating cable and work
it through opening in braid.
• Lightly score inner
jacketaround and
downas shown.
• Peel off inner jacket.
• Cut and remove
all fiber strands.
• Score and remove
centerspacer.
• Remove any remaining
fiber material from
bus wires.
• Pull braid tight to
make pigtail.
Go to Step 6 Go to Step 6
5A
