nvent JBS-100-A - Page 4

nVent.com | 4Raychem-IM-H56046-JBS100A100A6- ML-1805
1/2 in
(13 mm)
6 in
(152 mm)
6 in
(152 mm)
VPL
5C

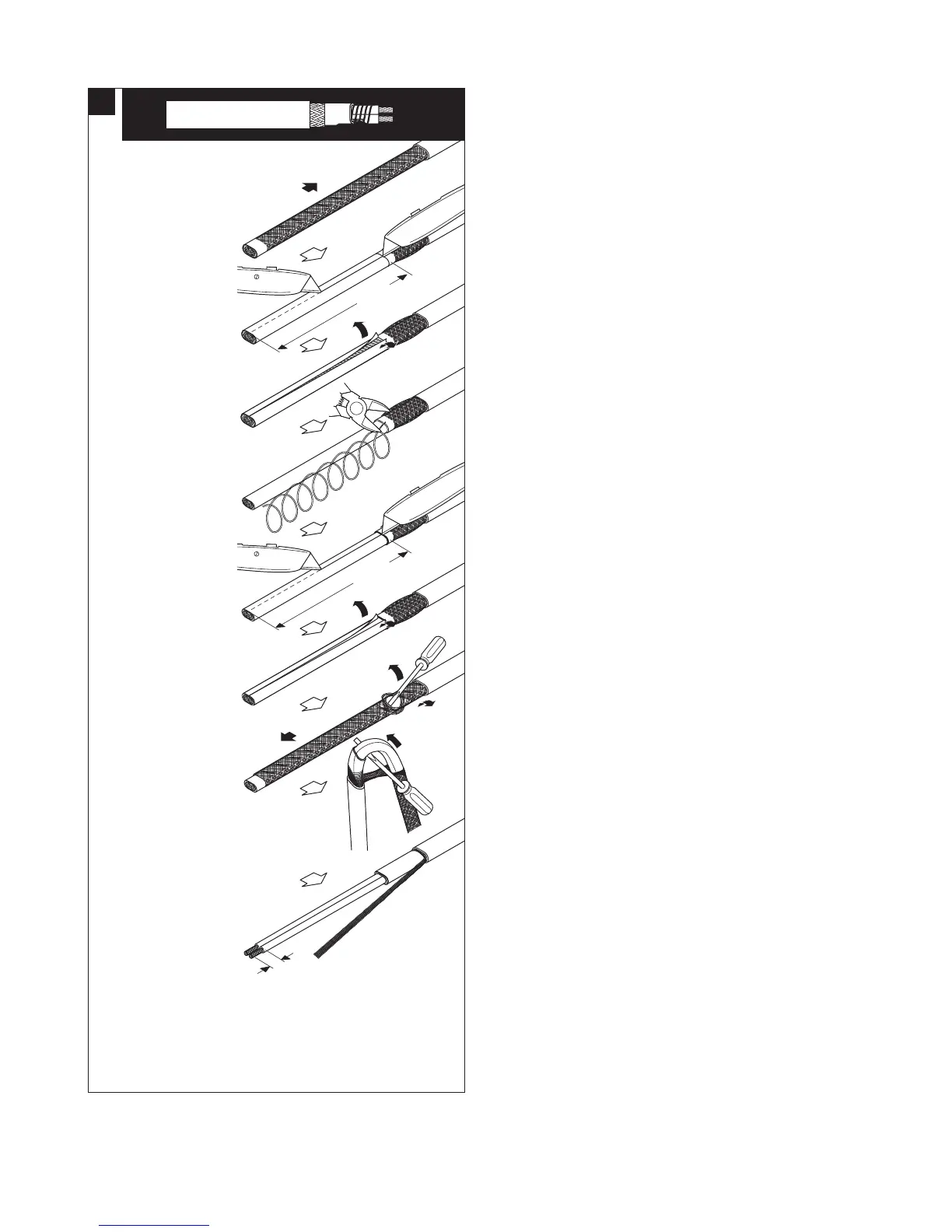

• Push braid back
and bunch as tight
as possible.
• Lightly score inner
jacketaround and
down asshown.
• Peel off inner jacket.
• Unwind heating
element, cut and
remove as shown.
• Lightly score clear
jacket around and
down as shown.
• Bend heating cable to
break jacket at the score
then peel off jacket.
• Push braid
forward. Use
a screwdriver
to open braid
as shown.
• Bend heating cable
and work it through
opening in braid.
• Remove insulation
from ends of
buswires.
• Pull braid tight to
make pigtail.
Go to Step 6
