nvent JBS-100-A - Page 5

nVent.com | 5Raychem-IM-H56046-JBS100A100A6- ML-1805
5/8 in
(15 mm)
Make sure the bus
wires do not kink,
bunch, or crossover.
1/2 in
(13 mm)
1/2 in
(13 mm)
1 in (25 mm)
6
8
10 11
Tubes
Make sure all strands
go into the tubes.
7
9

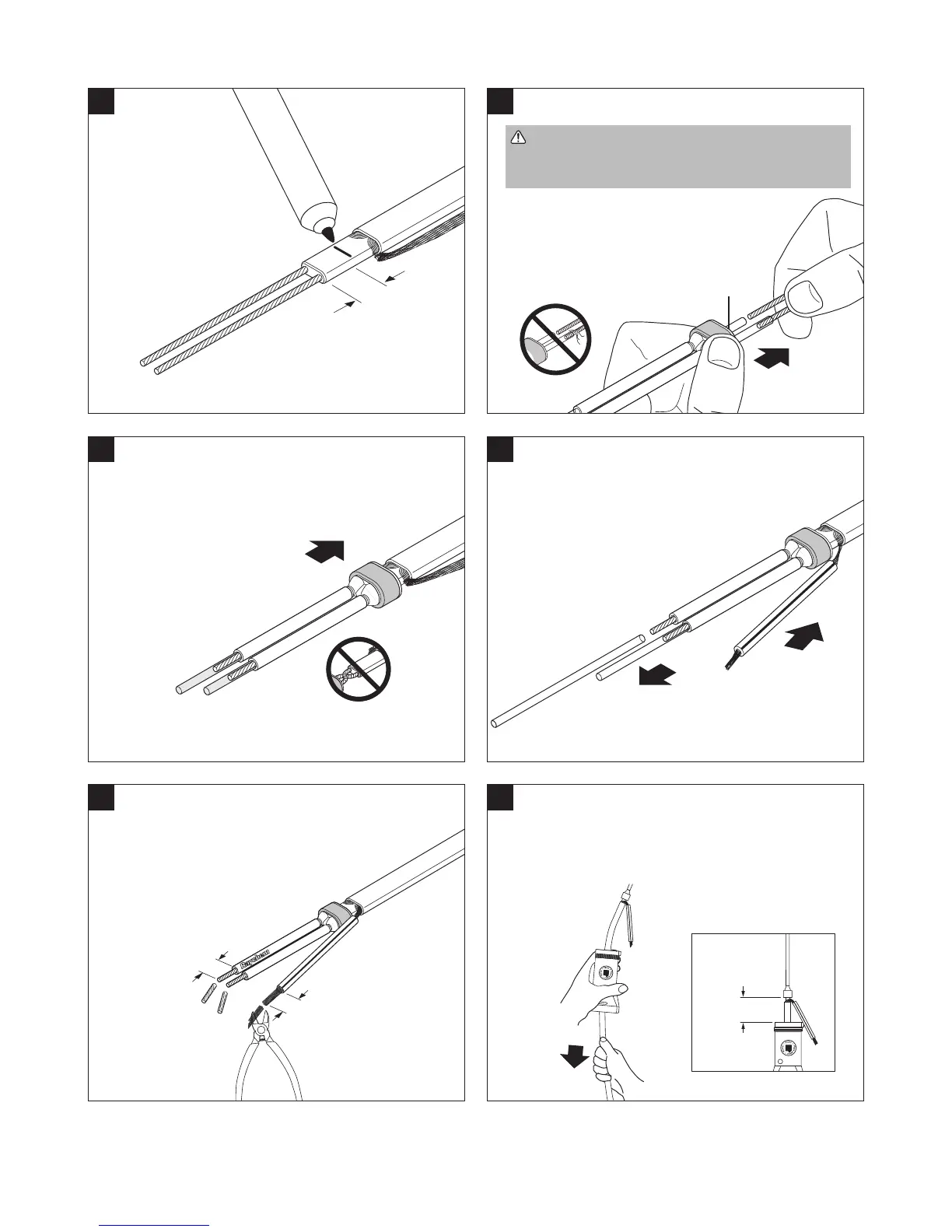

• Mark the jacket
asshown.
• Push core sealer onto the heating cable to the mark made in step 6.
Note: Extra force may be required for larger cables or at lower
temperatures.
• Slip the green/yellow tube onto the braid.
Heat-shrinking is not required.
• Trim bus wires and braid.
• If needed, re-twist and straighten bus wires, then
insert into the guide tubes as shown.
• Remove the guide tubes and dispose
of them in a plastic bag.
• Pull heating cable back into stand so 1 in (25 mm) is exposed as
shown. Use cable lubricant if needed.
CAUTION: Health Hazard.
Wash hands after contact with sealant. Consult
material safety data sheet VEN 0058.
