Make sure the bus
wires do not kink,
bunch, or crossover.
8
9

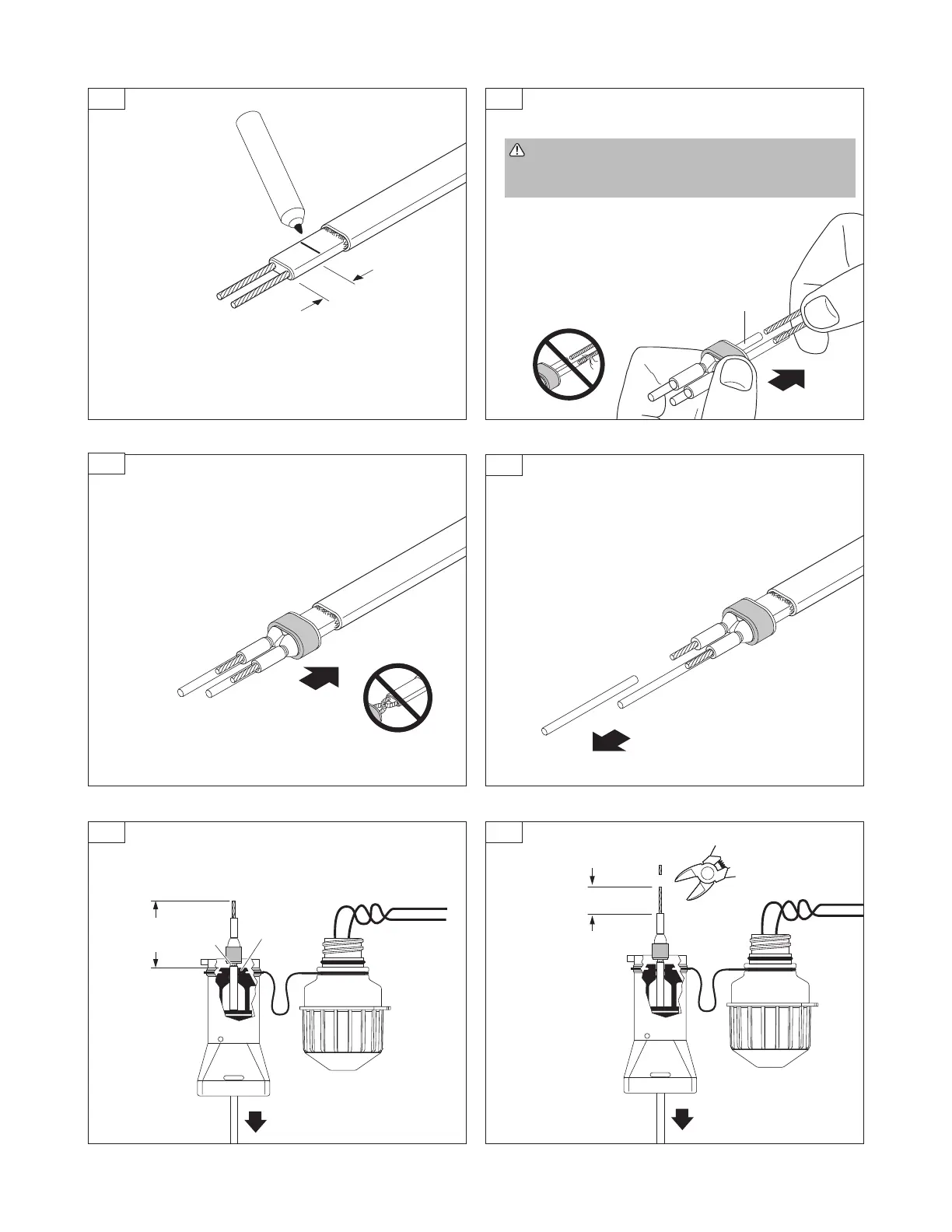

• Push core sealer onto the heating
cable to the mark made in step 6.
Note: Extra force may be required
for larger cables or at lower
temperatures.
• Remove the guide tubes and
dispose of them in a plastic bag.
1 3/4 in
(44 mm)
Strain
relief
Braid
10
• Pull cable back through end seal stand until braid is just
visible above strain relief.
1/2 in
(13 mm)
11
• Trim exposed
conductors.
5/8 in
(15 mm)
6
• Mark the jacket
as shown.
Tubes
Make sure all strands
go into the tubes.
7
• If needed, re-twist and straighten
bus wires, then insert bus wires
into guide tubes as shown.
Caution: Health Hazard. Wash hands after contact
with sealant. Consult material safety data sheet
VEN0033.
