nvent RAYCHEM E-100-L - Page 6

6 | nVent.com

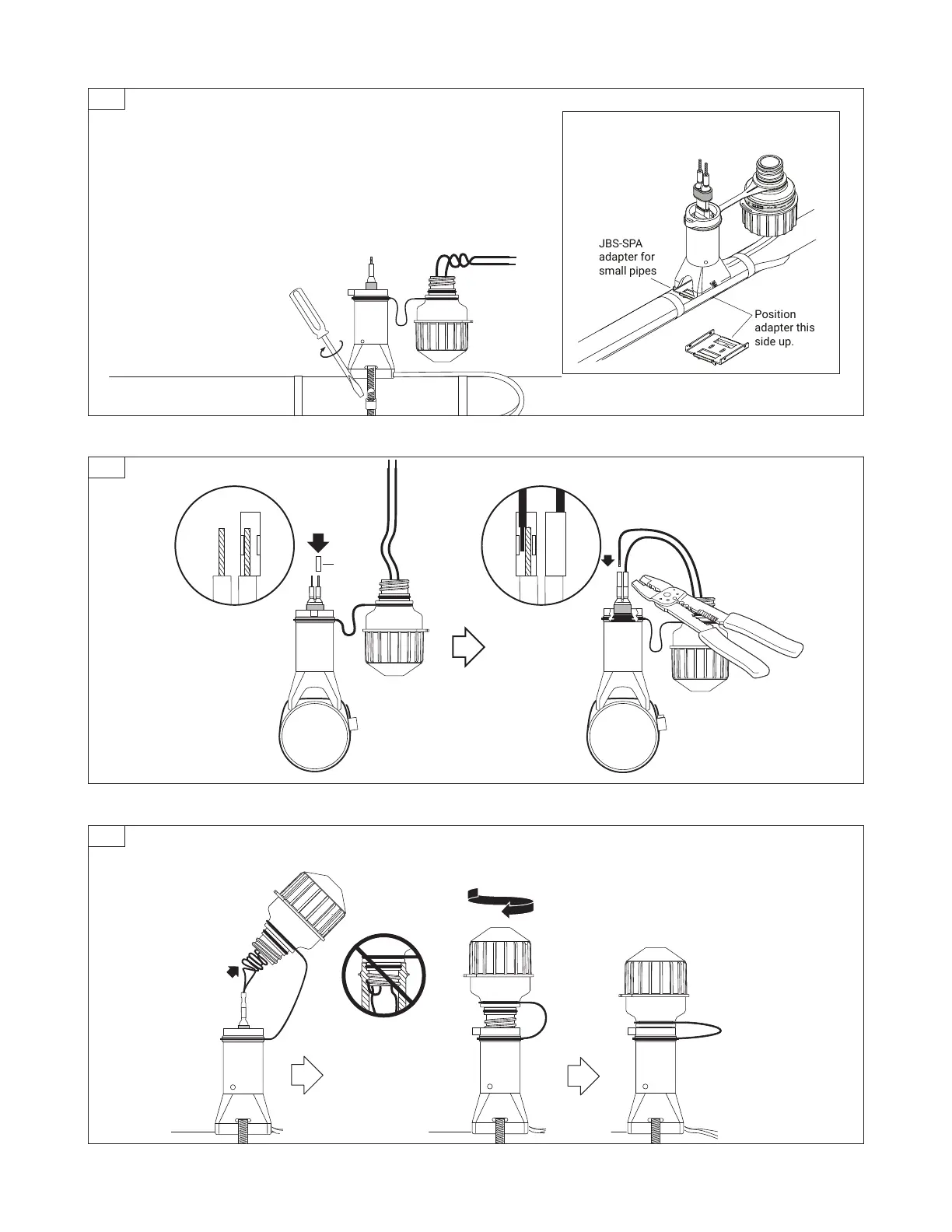

Nota: For 1 in
(25-mm) and smaller
pipes use adapter
(purchased
separately) between
stand and pipe.
Position
adapter this
side up.
JBS-SPA
adapter for
small pipes
• Fasten end seal stand to pipe with pipe strap. Do not pinch
heating cable. Be sure pipe strap is under heating cable.
• Loop and tape extra heating cable to pipe. Minimum bend
radius is 3/4 in (20 mm).
12
Insulated
parallel
crimps
13
• Place blue crimps
onto bus wires.
• Crimp bus wires to
lead wires.
Be sure wires
are not caught
in threads.
14
• Push excess wire
inside light.
• Tighten light onto end seal stand.
