nvent RAYCHEM User Manual

2 | nVent.com
1
5
Do not cut through
metal braid or
inner jacket.
2
4

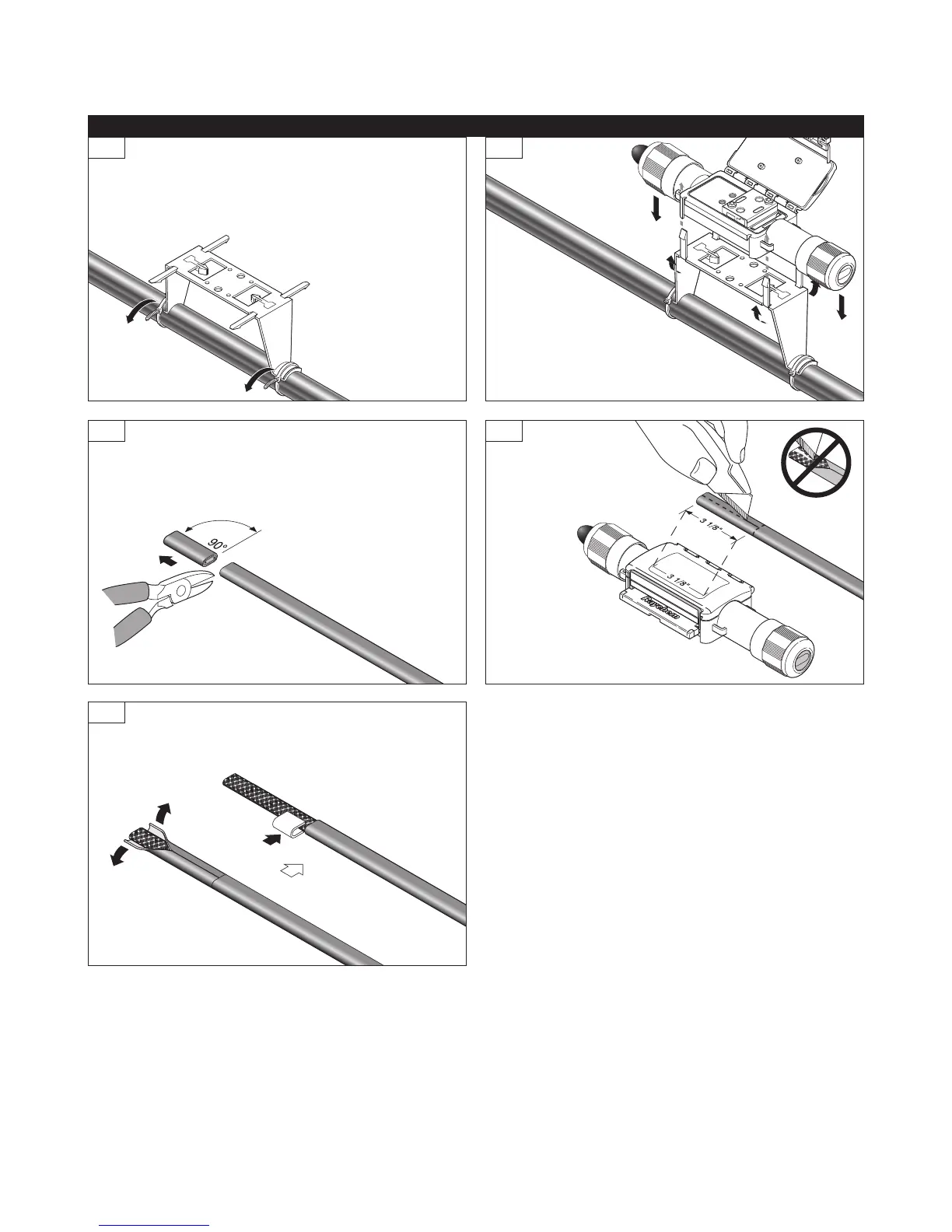

• Using the plastic cable ties, attach the bracket to the pipe.
Note: For roof-mounted applications, follow steps 3 through
9 (pages 2–4), then turn to “Roof Installation” on page 4.
Do not install the end seal where it can be immersed in water.
3
• Allow enough extra heating cable to make service loops
as required.
• Make sure end of heating cable is cut clean.
• Remove the outer jacket.
• Place metal clip over the base of exposed braid.
• For the RayClic-LE
lighted end seal, fold
up the four outer snaps, then
position the connector over the snaps
and press down.
• Score around
and down the
outer jacket of the
heating cable 3 1/8 inches
from the end.
If you experience difficulty during installation, refer to the “Troubleshooting Guide” on page 5.
Lighted End Seal Installation

nvent RAYCHEM Specifications

General

Product Category	Heating Cables
Brand	nVent Raychem
Product Type	Self-Regulating Heating Cable
Jacket Color	Black
Maximum Maintain Temperature	150°F (65°C)
Minimum Installation Temperature	-40°F (-40°C)
Maximum Exposure Temperature	185 °F
Certifications	CSA | ATEX | IECEx
Voltage Rating	120 V | 240 V
