nvent RAYCHEM User Manual

nVent.com | 3
7 8
6B

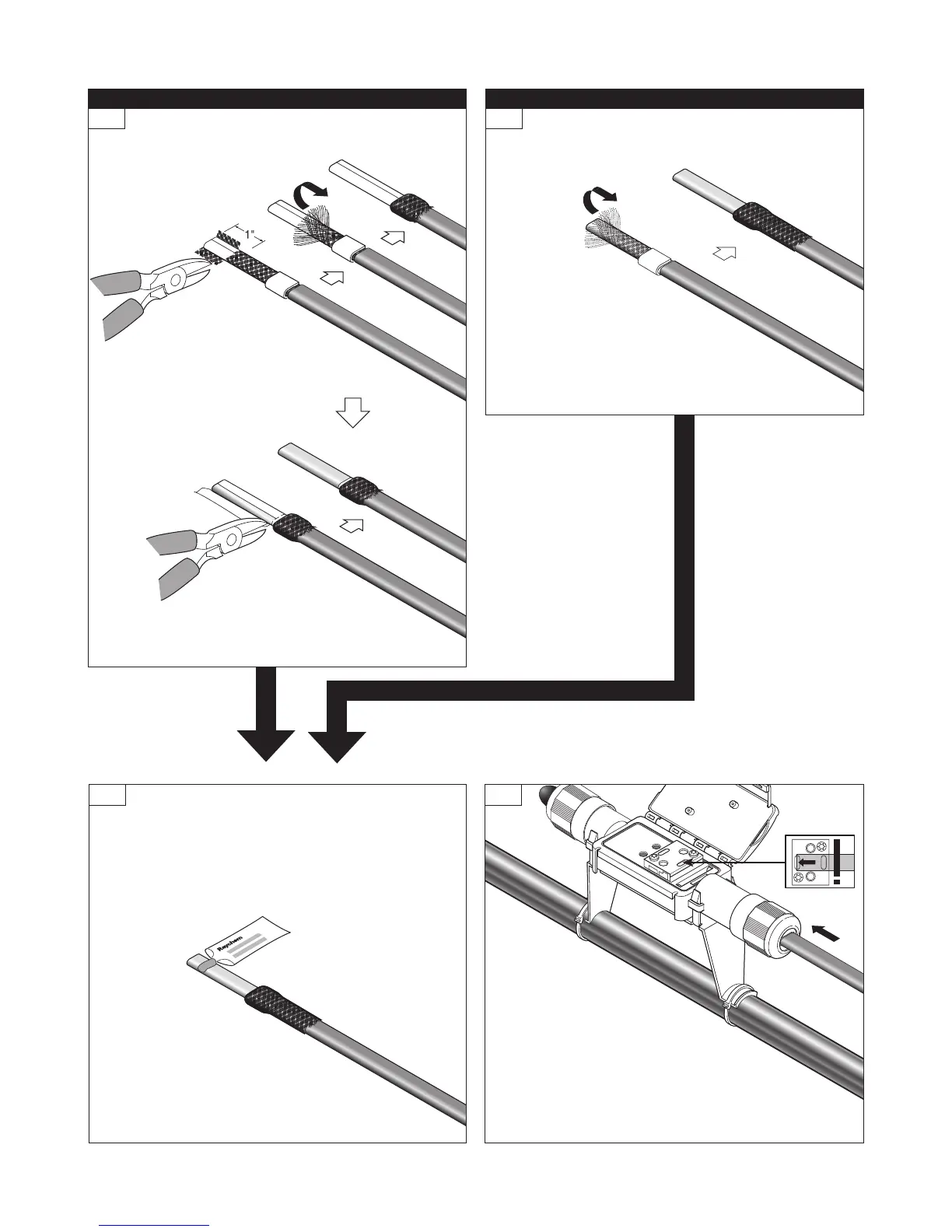

• Pull exposed braid back over metal clip.
• Apply a small amout of lubricant to the jacket surface
near the end of the cable.
• Avoid using large amounts of lubricant on the exposed
end of the cable.
IceStop and XL-Trace Only
• Insert prepared heating cable
end into connector. Push until
heating cable is fully inserted and end is
visible through opening in connection cover
plate.
Note: RayClic connection kits are designed to be installed only
once; the heating cable cannot be removed once installed
IceStop and XL-Trace
6A
HWAT Only
• Using wire cutters, cut away 1-inch of the braid.
• Pull exposed braid back over metal clip.
• Using wire cutters, cut away aluminum wrap.
HWAT

nvent RAYCHEM Specifications

General

Product Category	Heating Cables
Brand	nVent Raychem
Product Type	Self-Regulating Heating Cable
Jacket Color	Black
Maximum Maintain Temperature	150°F (65°C)
Minimum Installation Temperature	-40°F (-40°C)
Maximum Exposure Temperature	185 °F
Certifications	CSA | ATEX | IECEx
Voltage Rating	120 V | 240 V
