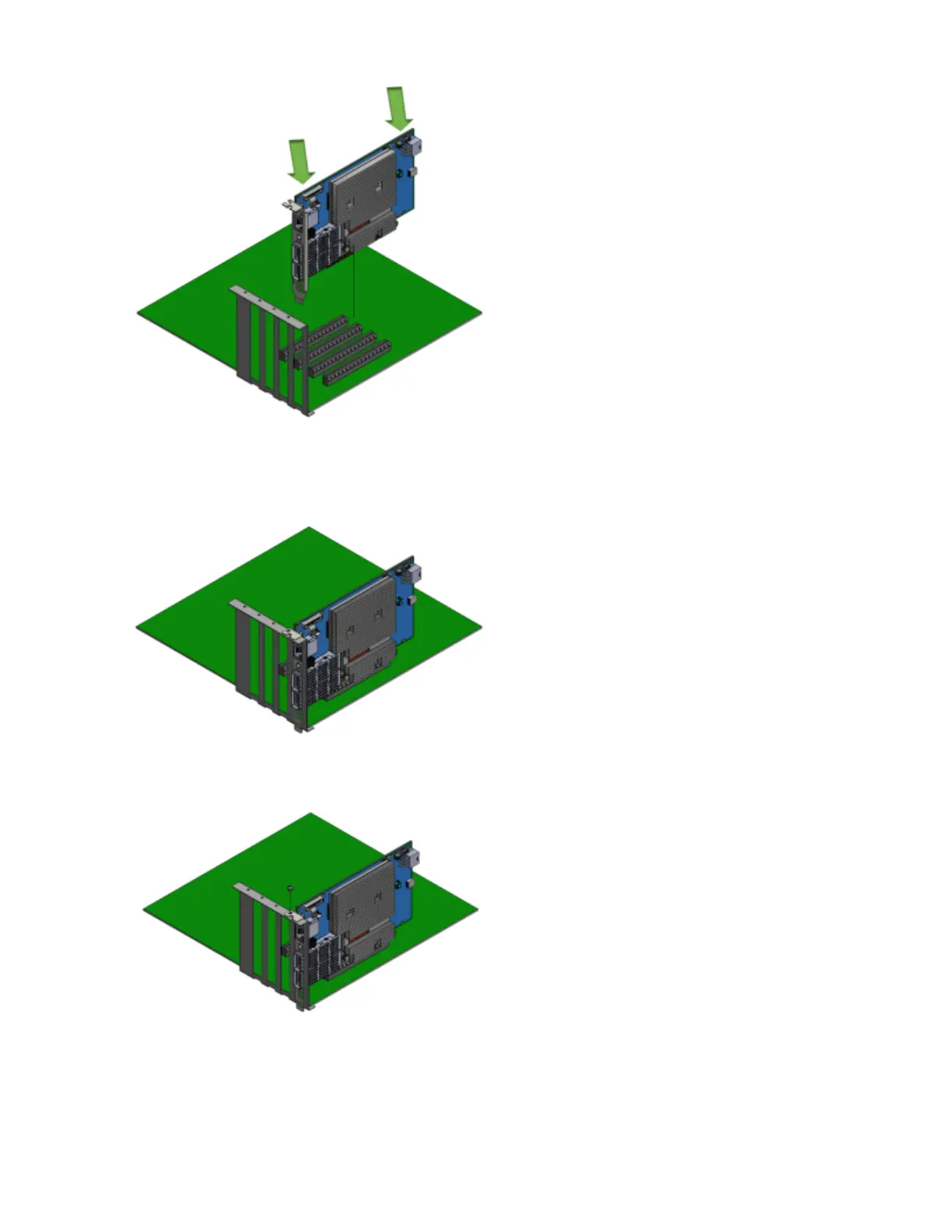

4. When the DPU is properly seated, the port connectors are aligned with the slot
opening, and the DPU faceplate is visible against the system chassis.
5. Secure the DPU with the screw.
6. For the FHHL 100Gb/s P-Series DPUs, install the PCIe external power cable. Connect
the 6-pin power connector from the power supply to the power connector on the
top edge of the DPU. Note that the connector and socket on the graphics card have
a unique shape and connect one way only.
