Power Supply Carrier Replacement

DGX-2 System DU-09224-001 _v09|32

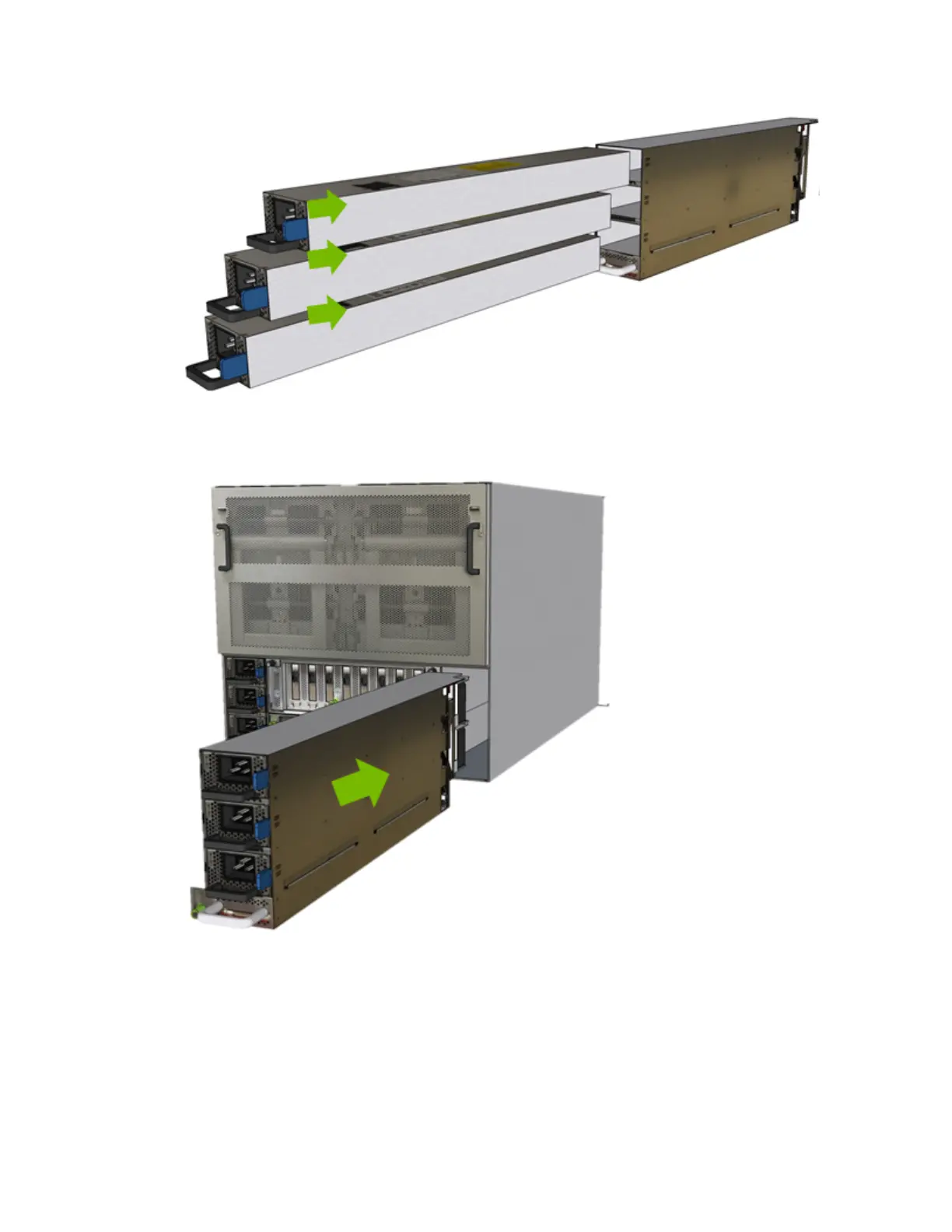

6. Replace the power supply carrier.

a). Insert the power supply carrier into the chassis.

b). Tighten the thumbscrew to secure the power supply carrier.
