ConnectX-5 Card Replacement
DGX-2 System DU-09224-001 _v09|42

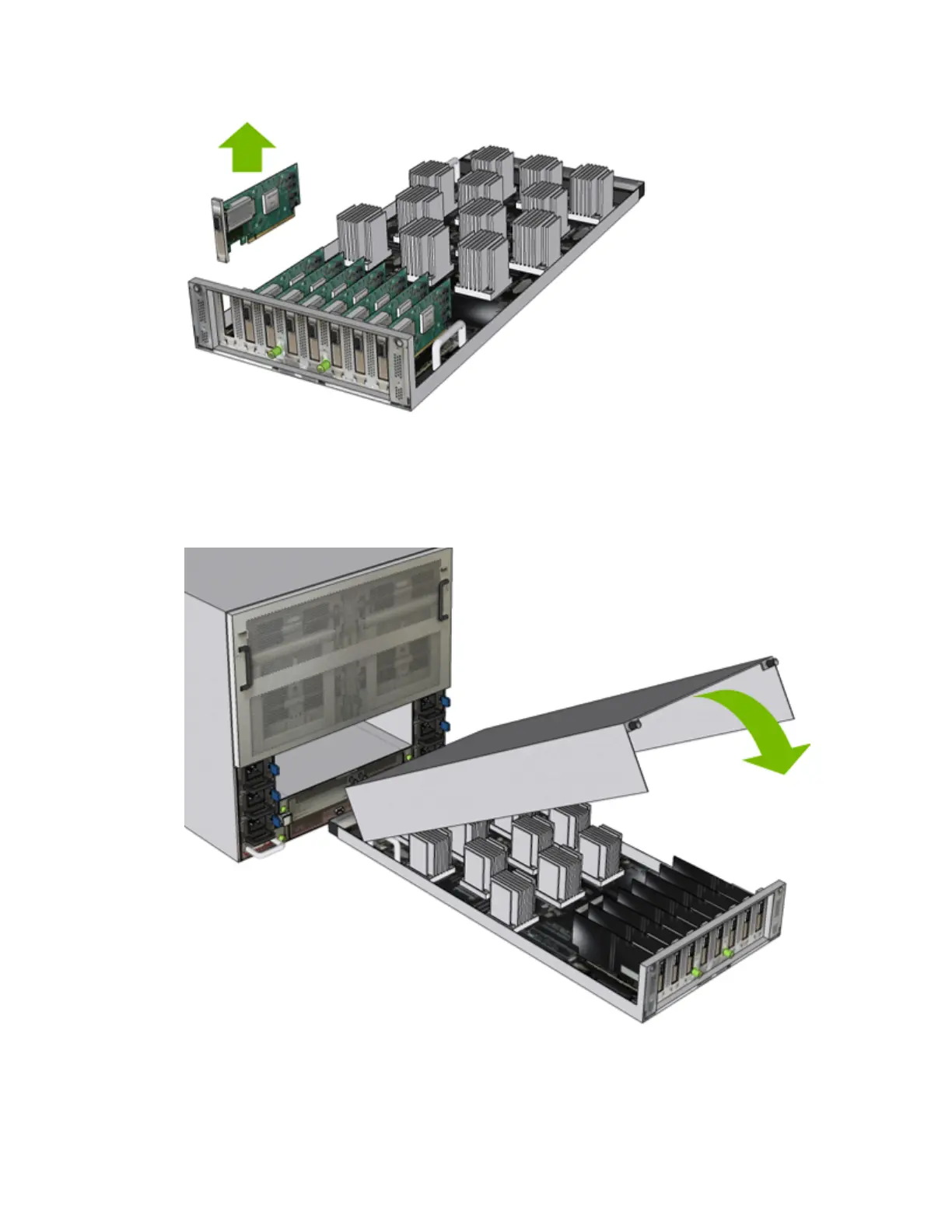

c). Insert the replacement card and secure with the screw removed from the previous
step
7. Install the I/O tray.
a). Replace the I/O tray lid by placing it over the module using the guiding pins and
grooves.
b). Slide the lid back so that the black screws enage with the tray, then tighten the black
screws to secure the lid.
