Removing and Attaching the Bezel

DGX-2 System DU-09224-001 _v09|61

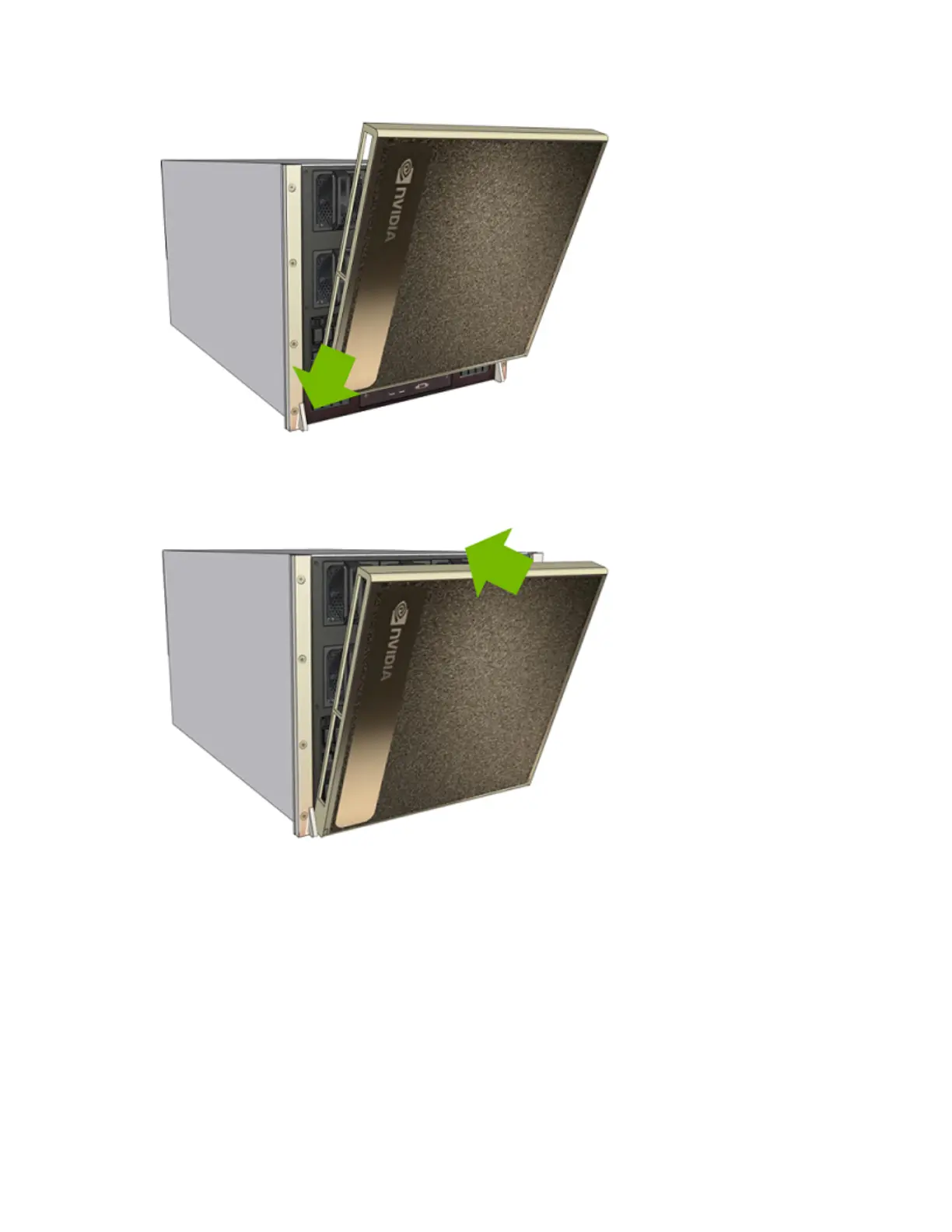

2. Pivot the bezel up to connect to the magnetic attachments.
