Nvidia GeForce GTX 770 User Manual

HARDWARE INSTALLATION


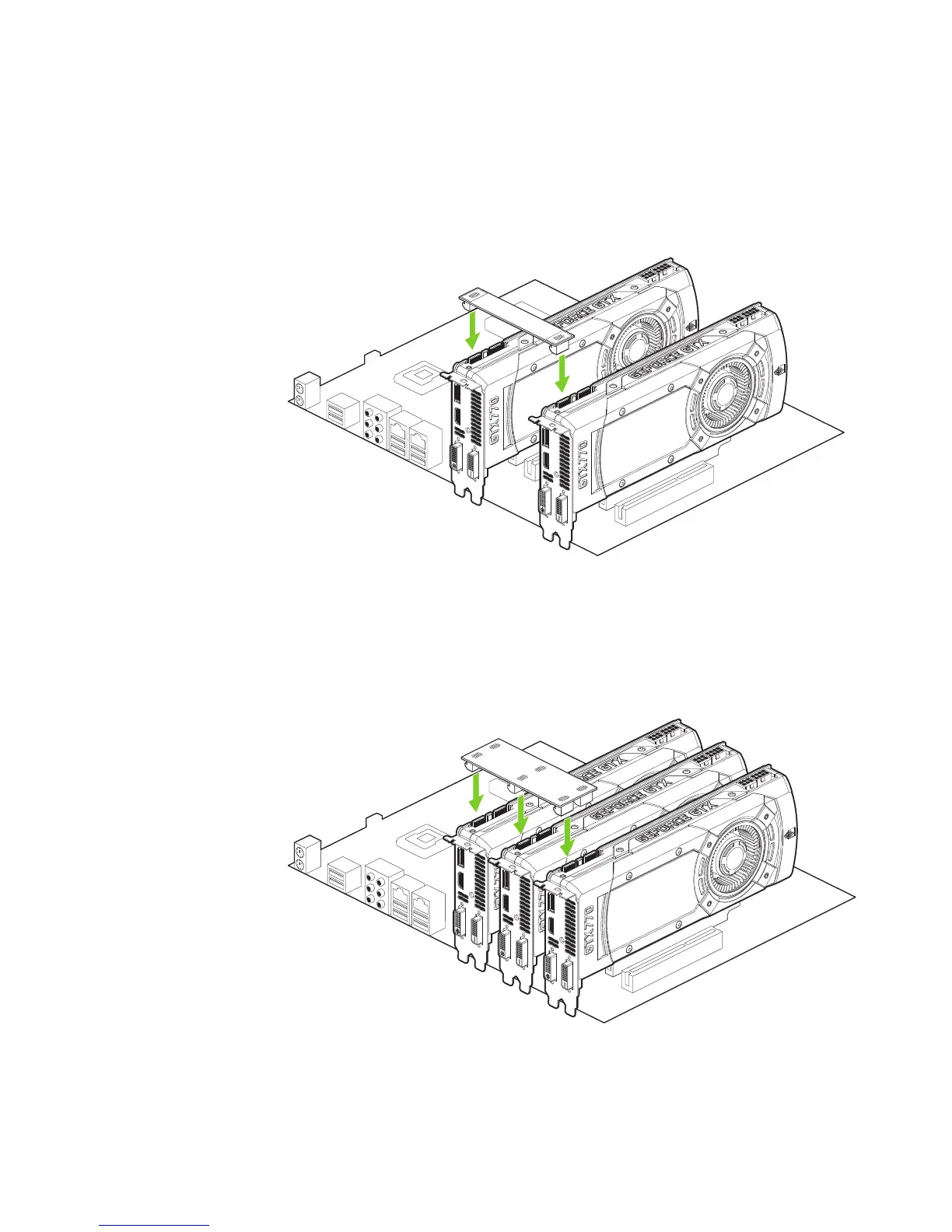

6 Install a second GeForce GTX 770 graphic card (2-way SLI):
a) Install the second GeForce card into the outer most PCI Express
x16 slot on the motherboard.
b) Connect the two GeForce GTX 770 cards together using the dual
SLI bridge connector that came with your SLI-ready motherboard.
7 Install a third GeForce GTX 770 graphic card (3-way SLI):
a) Install the third GeForce card into the middle PCI Express x16 slot
on the motherboard.
b) Connect the three GeForce GTX 770 cards together using the
tripple SLI bridge connector that came with your SLI-ready
motherboard.
SLI
SLI

Nvidia GeForce GTX 770 Specifications

General

CUDA Cores	1536
Base Clock	1046 MHz
Boost Clock	1085 MHz
Memory	2 GB or 4 GB GDDR5
Memory Interface Width	256-bit
Memory Bandwidth	224.3 GB/s
TDP	230 W
Recommended System Power	600 W
Architecture	Kepler
GPU	GK104
Memory Clock	7010 MHz
Outputs	Dual-link DVI-I, Dual-link DVI-D, HDMI, DisplayPort
Process	28 nm
OpenGL	4.4
Shader Model	5.0
PCI Express Interface	PCIe 3.0 x16
Maximum Digital Resolution	4096x2160
Maximum Display Outputs	4
SLI Support	Yes
