3.
4.

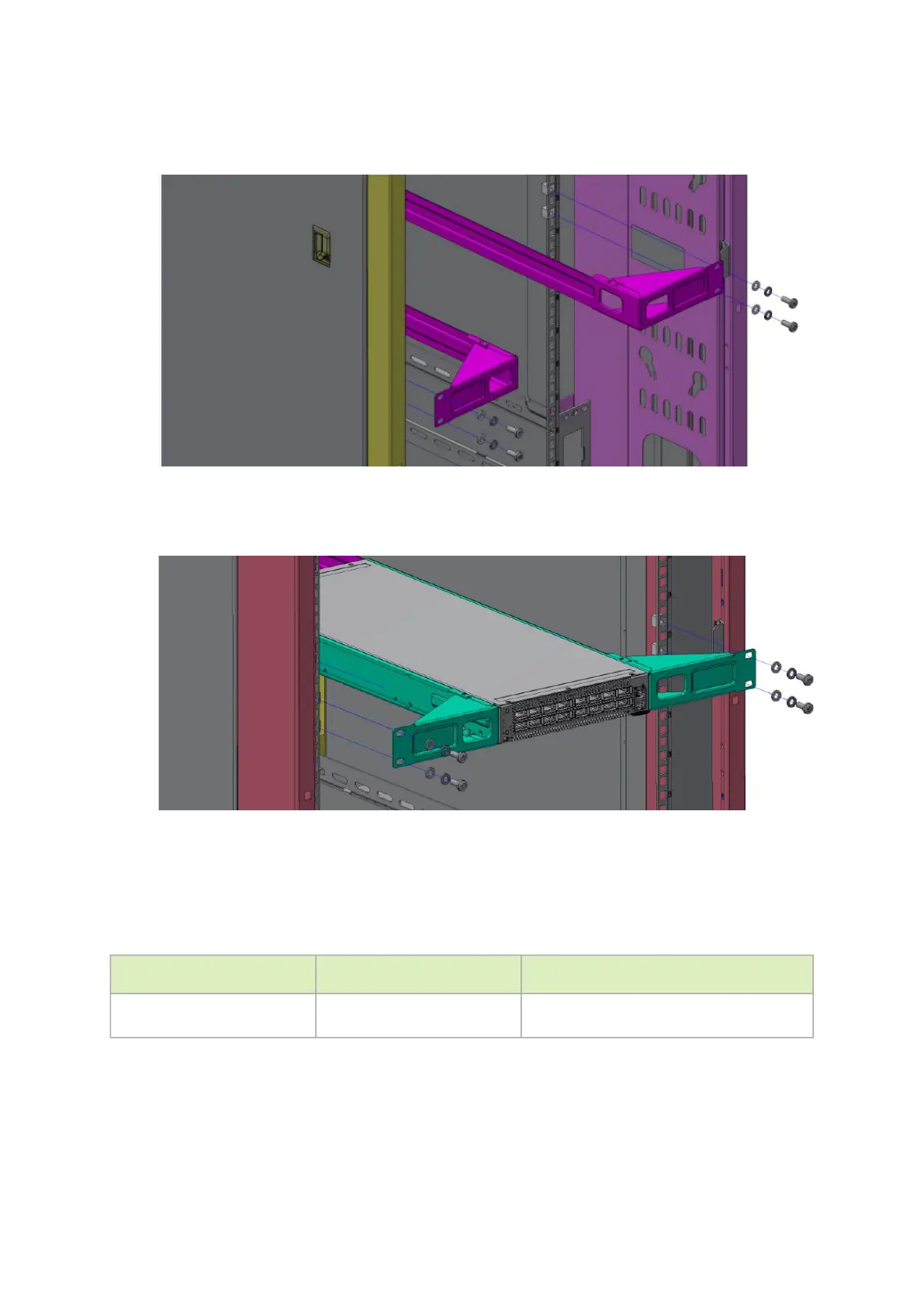

On the rear side of the cabinet, install the two blades (F) in the selected rack unit, using four
M6 screws and washers (C+D+E). Do not tighten the screws yet.
Attaching the Blades to the Rack
Mount the system into the rack enclosure by sliding the rails in the rack. Secure the brackets
to the rack’s posts by inserting four M6 screws and washers (C+D+E) in the designated cage
nuts - 2 in each side. Tighten all screws.
Attaching the Brackets to the Rack
SN2201 Tool-Less Rail Kit
Tool-Less 4-Post Mounting Rail-Kit
Kit Part Number Kit Legacy Part Number Rack Size and Rack Depth Range
930-9NRKT-00JS-000 MTEF-KIT-M-TL NVIDIA Tool-less rack installation kit, 4-post
rack, for SN2201 switch
The following parts are included in the tool-less rail kit (see figure below):
