Nvidia Spectrum-3 SN4000 Series User Manual

32
6.
7.
1.
2.
Slide the switch with the rails (A) and ears (C) installed on it into the left and right rails (B)
on the rack. Use four M6 screws (E) to fix the rack mount ears (C) to the rack. Do not tighten
the screws yet.

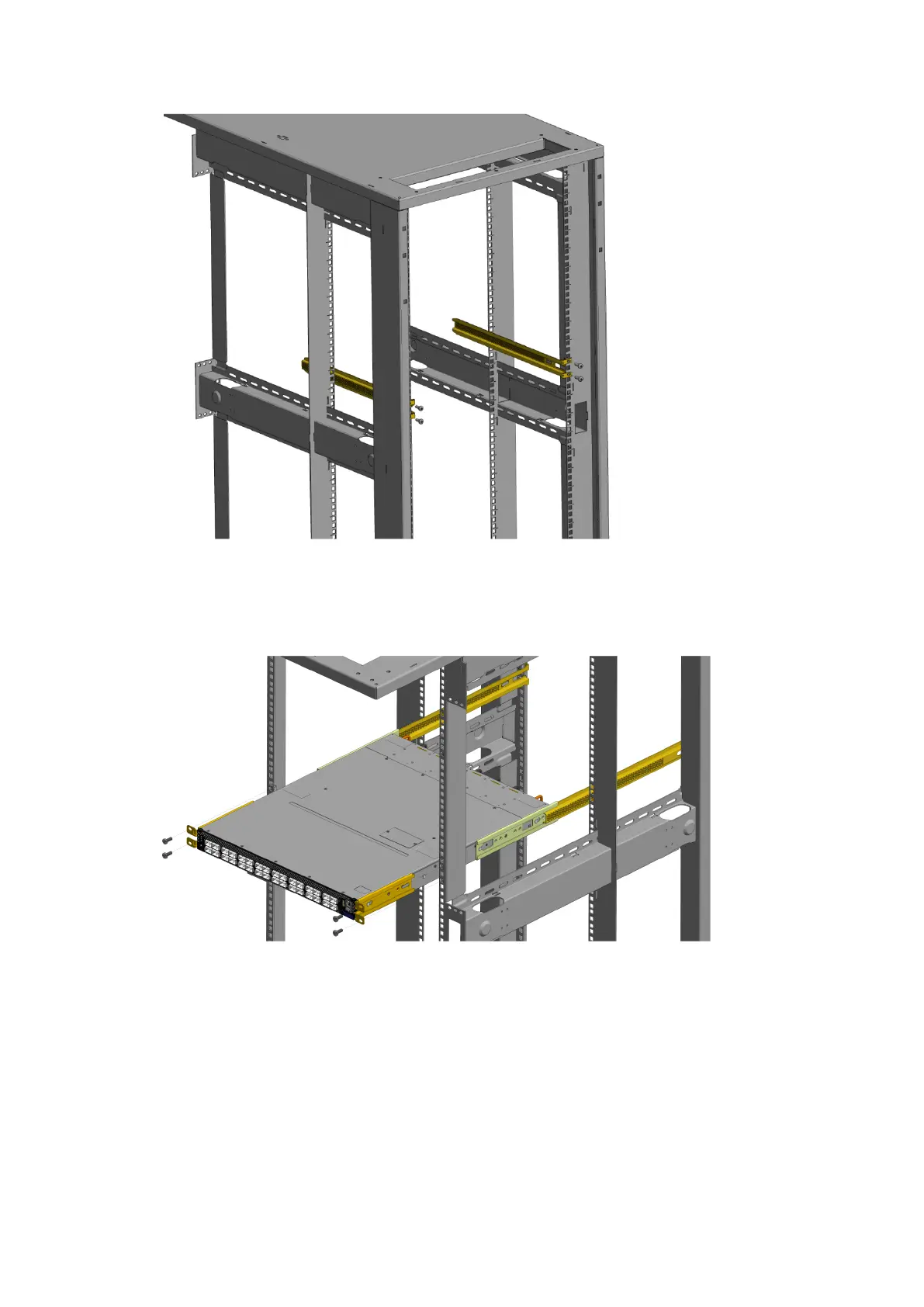

Sliding the Blades in the Rails
When fully inserted, fix the switch by tightening the 8 screws (E) inserted in Step 5 and Step
6 with a torque of 4.5±0.5.
Removing the System from the Rack
To remove a unit from the rack:
Turn off the system and disconnect it from peripherals and from the electrical outlet.
While your installation partner is supporting the system’s weight:
Loosen the screws attaching the rack mount ears (C) to the rack. Do not remove them yet.
