State State Indication
LEDs
[/1 /2 /3 /4]
QSFP Module LED
Indication
Comments
5
8x/1xE
6
8x/1xF
7
8x/1xG
8
8x/1xH

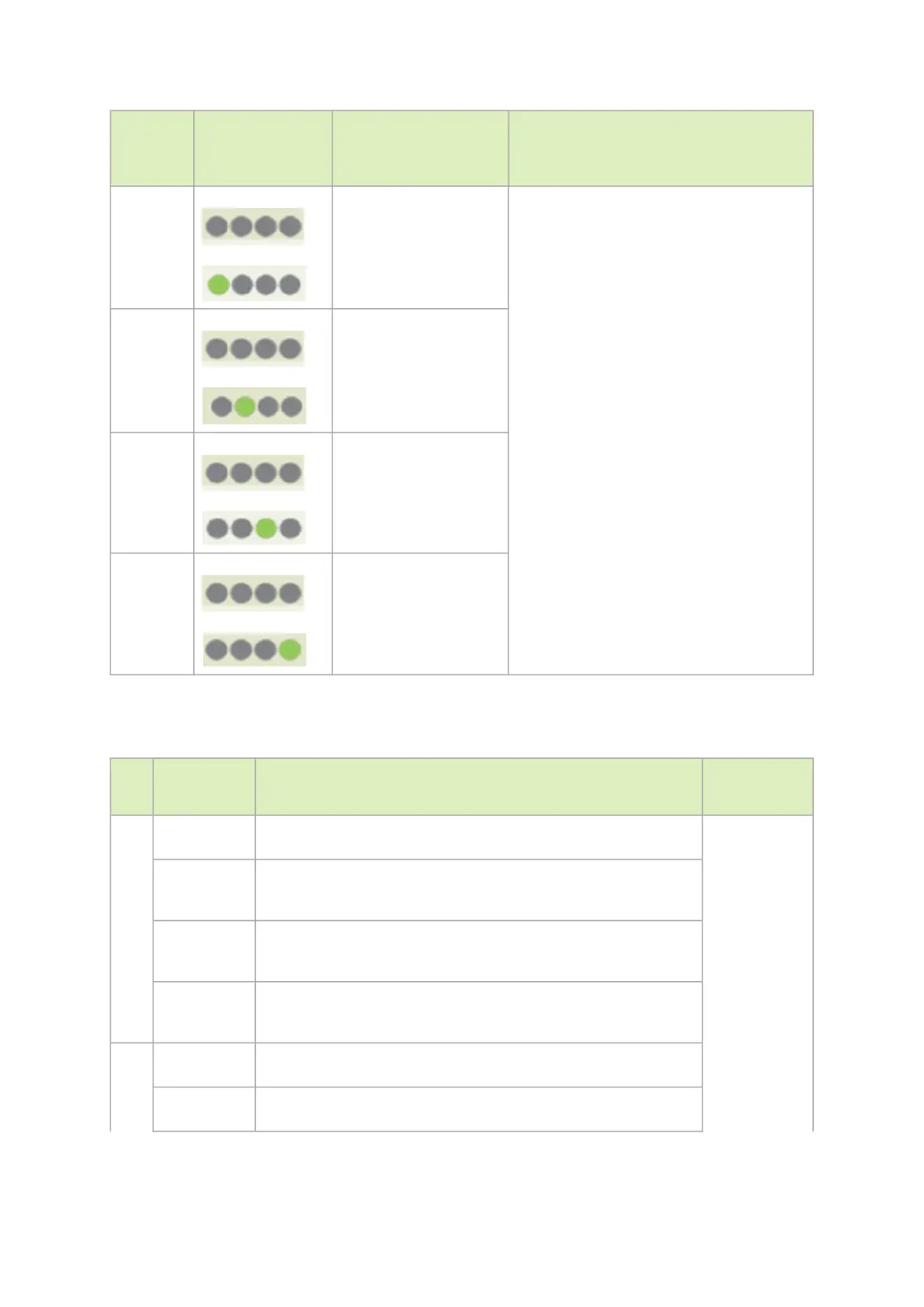

The port LED behavior indicates the port state, as follows:
SN4410/SN4700 Port LEDs Indications
Sta
te
LED
Behavior
Description Action
Required
0 Off No 8x/4x/2x/1x link was established on this QSFP module N/A
Solid Green At list one link was established: 8x/4x/2xA/2xB/1xA/1xB/1xC/1xD/
1xE/1xF/1xG/1xH
Flashing
Green
Traffic is running in linked ports
Flashing
Amber
N/A
1-8 Off Link is down
Solid Green Link is up with no traffic
