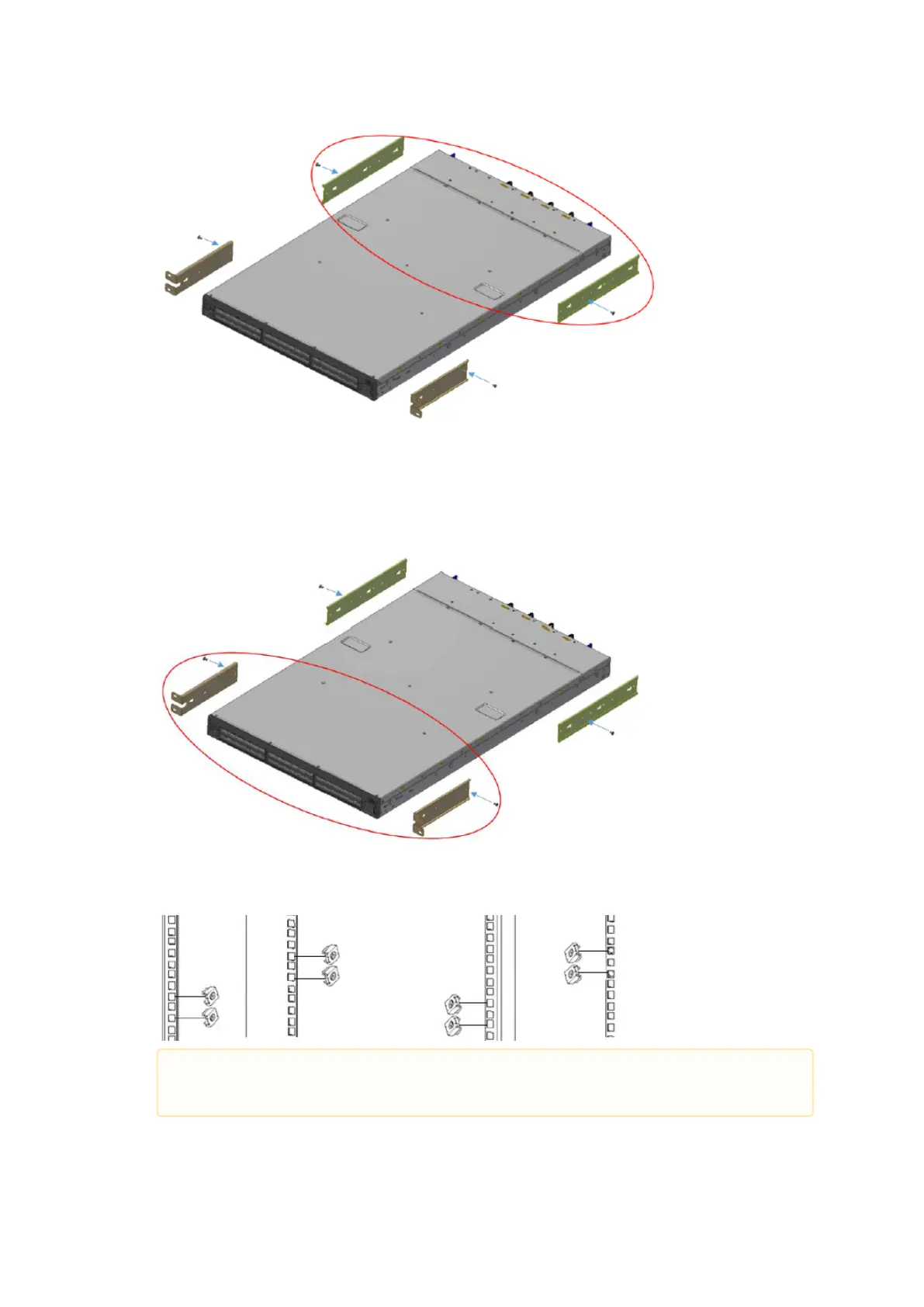

Attaching the Rails to the Chassis
Attach the left and right rack mount brackets (B) to the switch, by gently pushing the switch
chassis’ pins through the slider key holes, until locking occurs. Secure the system in the
brackets by screwing the remaining 2 flat head Phillips screws (E) in the designated points
with a torque of 1.5±0.2 Nm.
Attaching the Brackets to the Chassis
Install 8 cage nuts in the desired slots of the rack: 4 cage nuts in the non-extractable side (in
the top and bottom holes only) and 4 cage nuts in the extractable side.
Installing the Cage Nuts
While each rack U (unit) consists of three holes, the cage nut should be installed
vertically with its ears engaging the top and bottom holes only.
