5.
6.
7.
1.
2.
3.

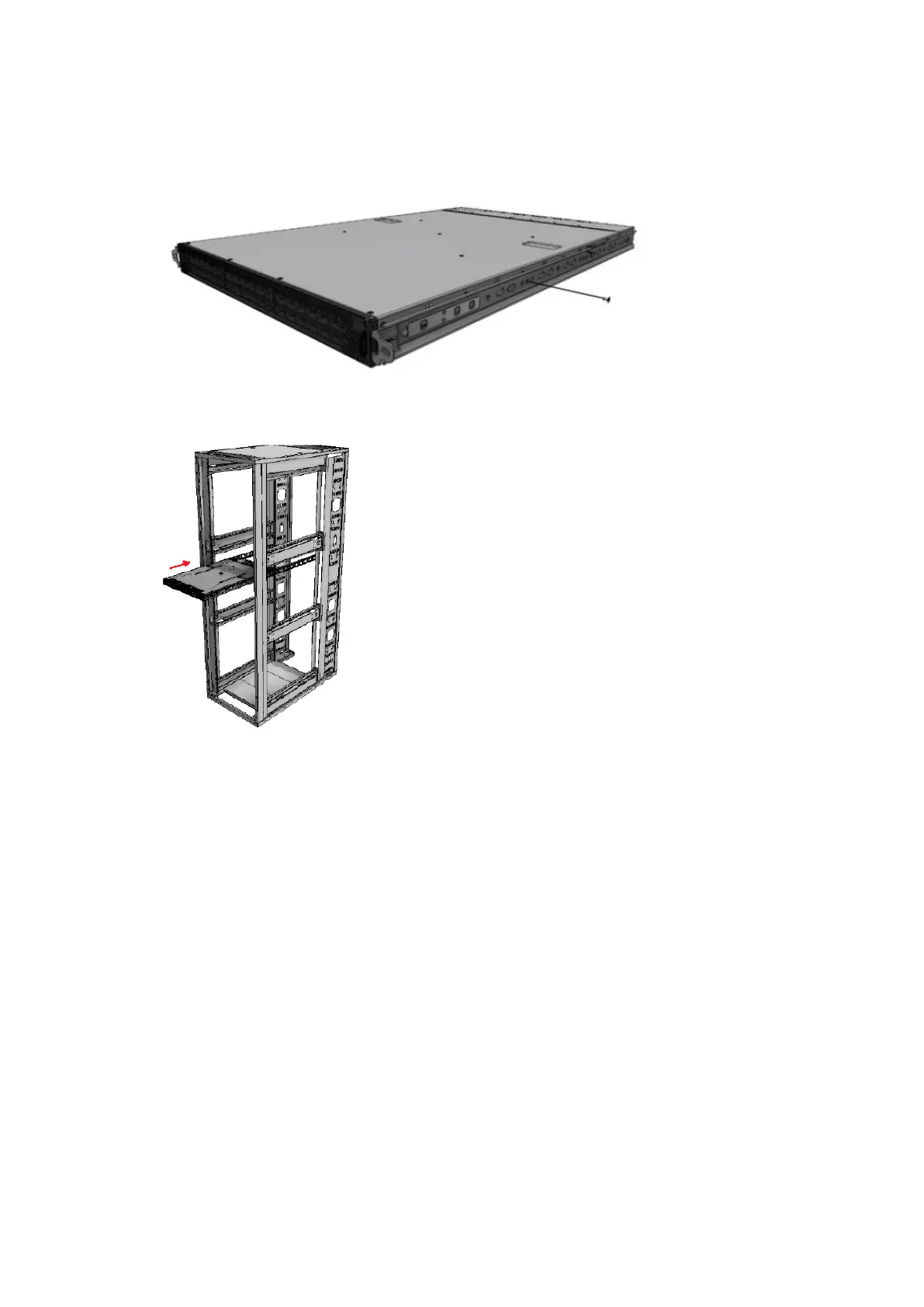

Secure the chassis in the inner rails by screwing the 2 flat head Phillips screws (F) in the
designated points with a torque of 1.5±0.2 Nm.
Securing the Chassis in the Inner Rails
Slide the switch into the rack by carefully pushing the inner rails into the outer rails installed
on the rack.
Sliding the Switch into the Rack
When fully inserted, fix the switch by closing the remaining 2 screws in the middle and
tightening the 8 screws inserted in Step 2 with a torque of 4.5±0.5 Nm.
Removing the System from the Rack
To remove a unit from the rack:
Turn off the system and disconnect it from peripherals and from the electrical outlet.
Unscrew the two M6 screws securing the front of the inner rails’ ears to the outer rails and to
the rack.
Pull the unit out until braking is felt. For safety purposes, the locking mechanism will not
allow a complete removal of the unit at this stage.
