Step 6. Install ten cage nuts in the desired slots of the rack: three cage nuts in the front part
of each cabinet post, and two cage nuts in the rear part of each cabinet post.

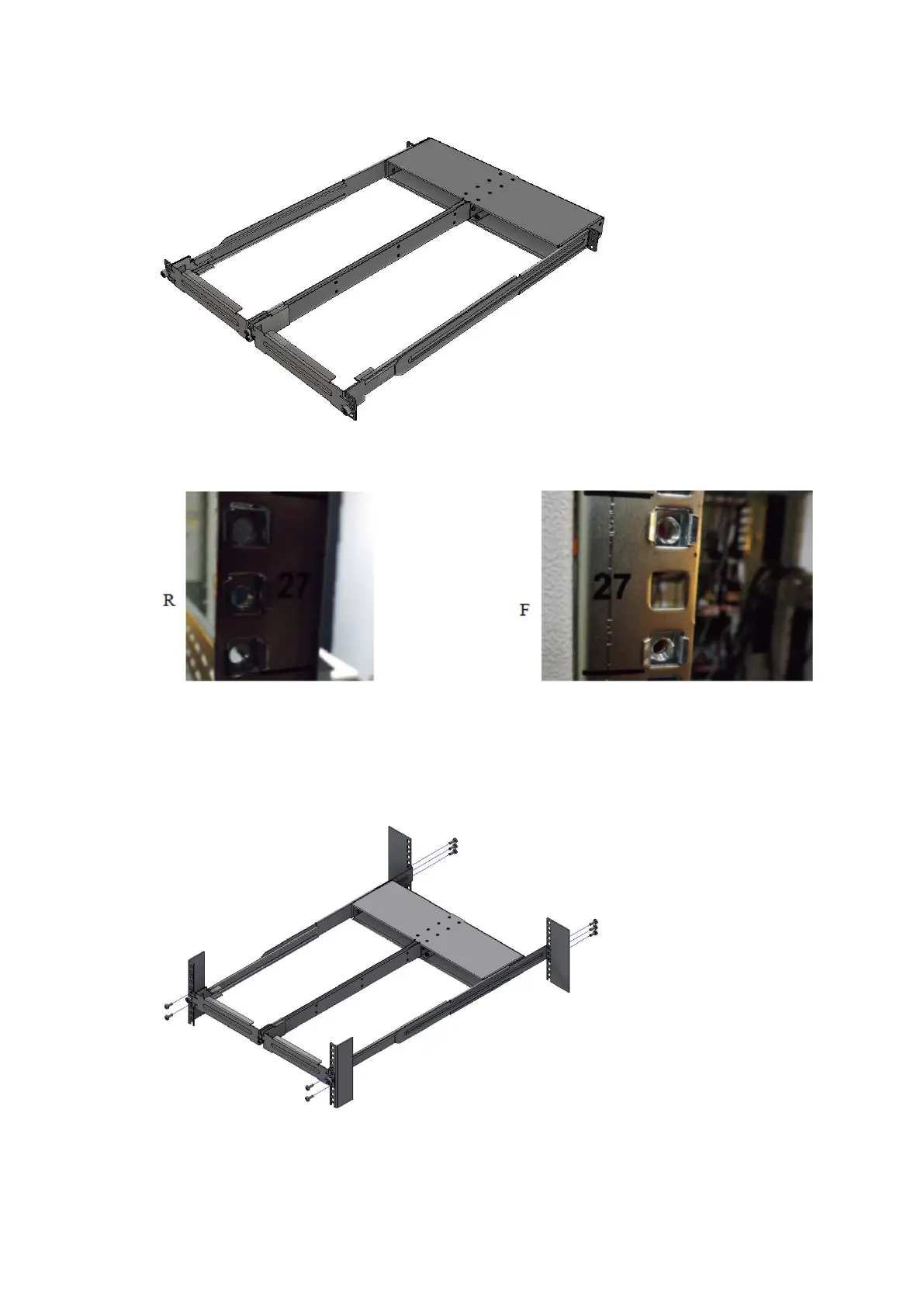

Installing the Cage Nuts
Attach the frame to the rack by using ten spacer cage nuts, and screw ten M6 pan head
screws - four in the front part of the rack, and 6 in its rear part. The recommended torque is
6.55-7.35 Nm. See figure above.
Place the frame in the cabinet.
Attaching the Frame to the Rack
To Next Page
