a.
•
•
b.

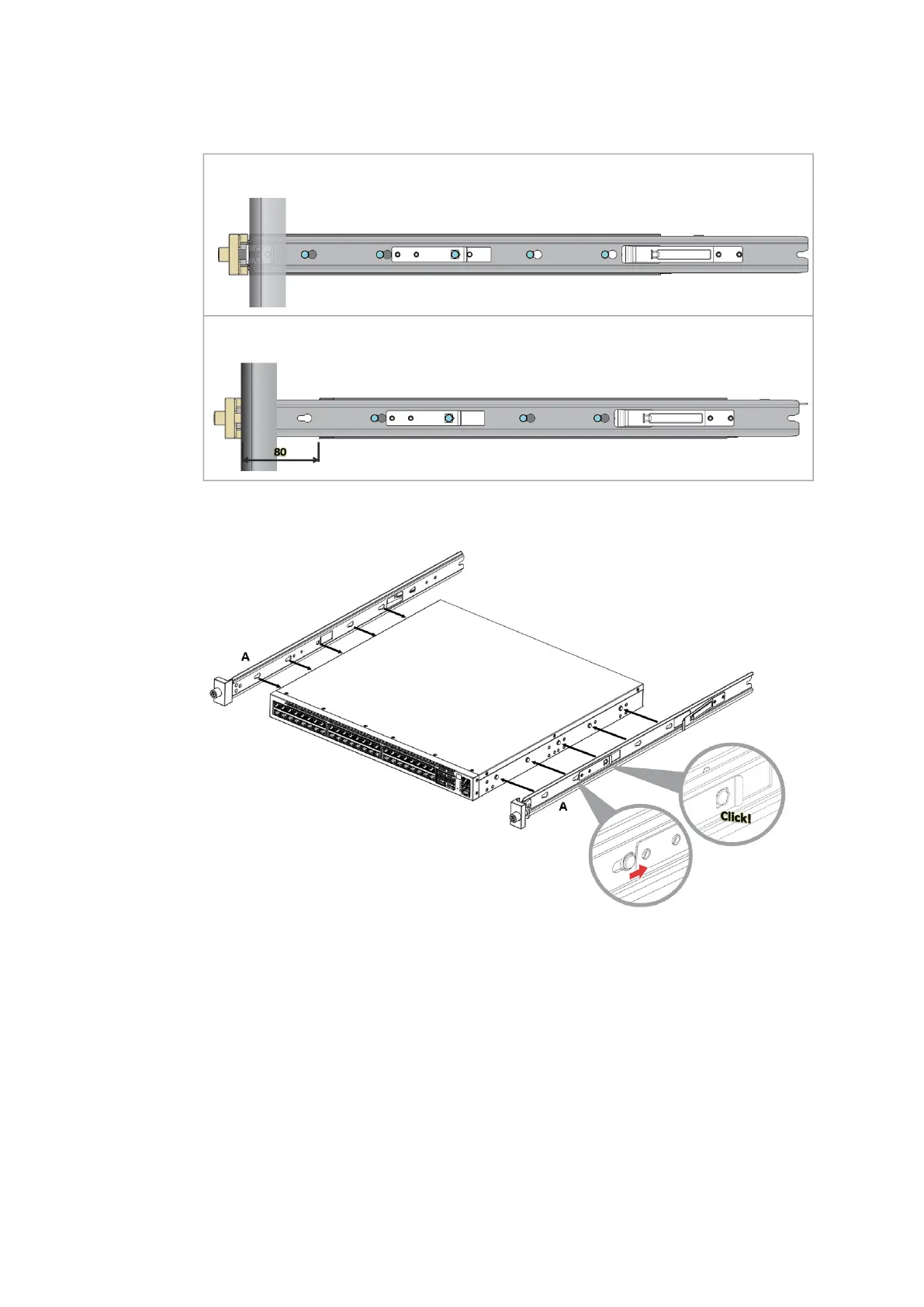

Attach the switch to the left and right inner rails according to your installation
selection -
Standard Installation:
The inner rails should be assembled to the switch using the first five holes (from its front side).
Recessed Installation:
The inner rails should be assembled to the switch skipping the first hole (from its front side).
Secure the assembly by pushing the chassis’ pins through the slider key holes, until a
click is heard and locking occurs.
