43
1.
2.
3.

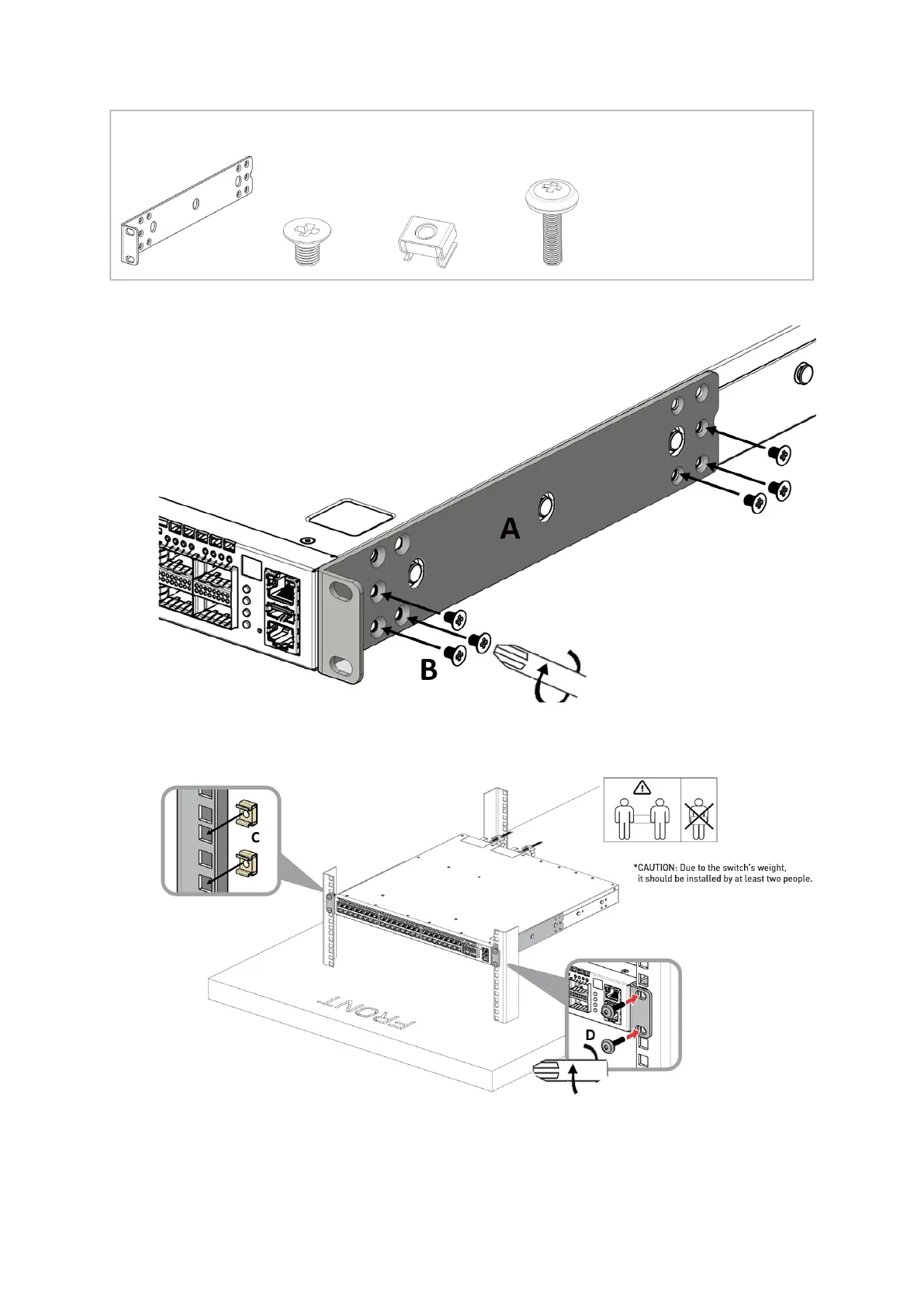

     2xA         12xB         4xC       4xD
Attach the two brackets (A) to the chassis, using the 12 M4 screws (B) provided in the kit.
Install 4 cage nuts (C) in the desired 1U slots of the rack.
Mount the device in the rack, using 10-32 rack mounting screws.
