Nyle C Series - WATER PIPING; MINIMUM PIPE SIZE; MIXING VALVES

7
All dimensions are in Inches. Dry Weights are approximate shipping weights.
*Performance rating at 75° F Entering Source Water Temperature and 100° F Entering Heated Water Temperature (EWT)
*Water Heated from 50° F to 150° F
** Single Pass design ow rates are shown above, the actual ow rate to heat water from 50° F to 150° F is much lower.
COP = Coecient Of Performance
Standard Voltage on C25W & C60W models - 208/230 V, 1-phase, 60Hz
Standard Voltage on C90W - C250W models - 208/230 V, 3-phase, 60Hz
Other power options are available upon request
LOCATION OF THE HEATED WATER CONNECTIONS COULD VARY BY UNIT,
SEE MANUFACTURER DOCUMENTS FOR EACH INDIVIDUAL UNIT.

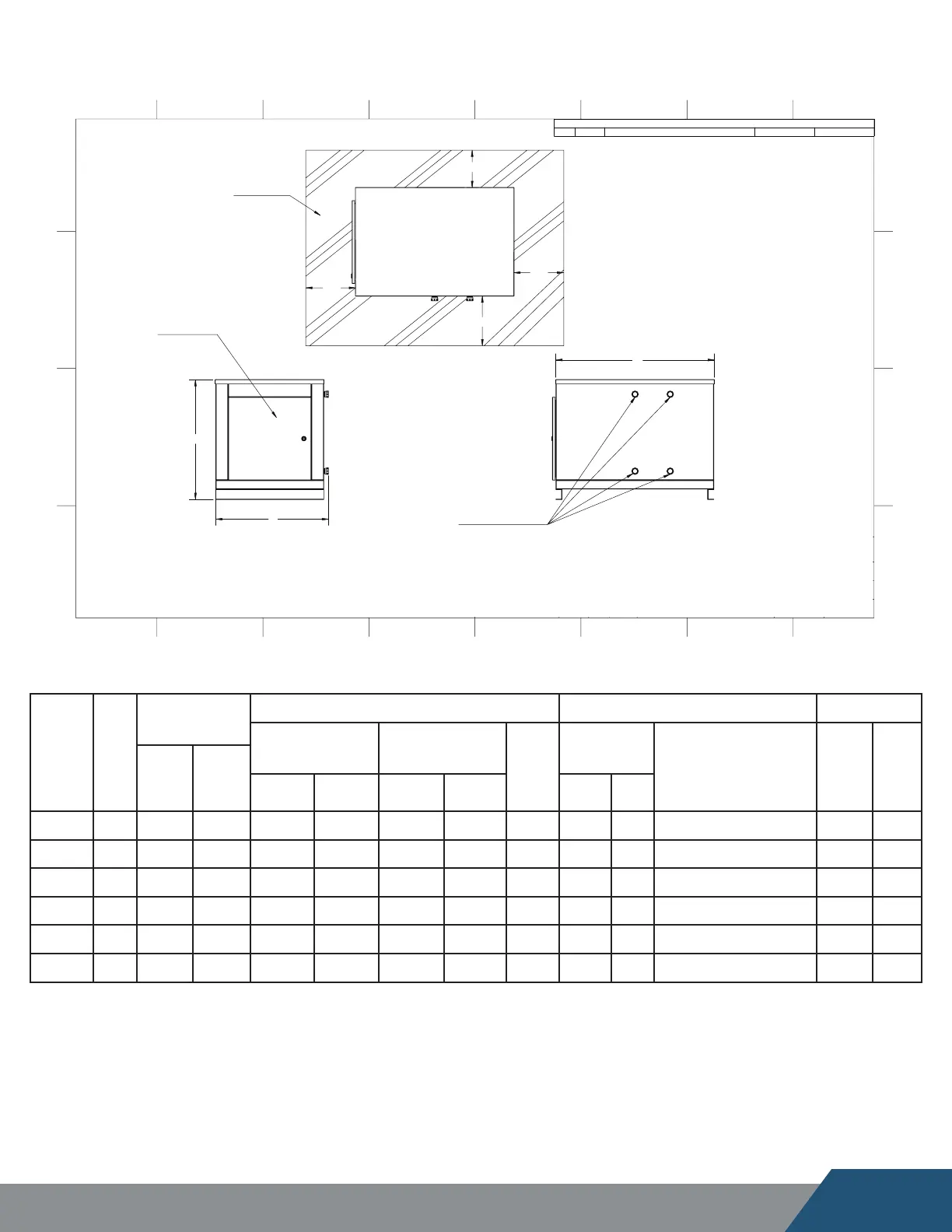

ROUGH IN DIMENSIONS
PERFORMANCE SPECIFICATIONS
Model
Number
Source Water
Flow Rate (GPM)
Heated Water
Flow Rate (GPM)
Performance Dimensions Weight
Water Heating
Capacity
Cooling Capacity
Combined
C.O.P
Inlet Outlet
Water
(FPT)
Length x Width x Height
(A x B x C)
Dry Weight
(LBS)
Operating
Weight (LBS)
Single
Pass**
Multi
Pass
BTUH
Heating
C.O.P
BTUH
Cooling
C.O.P
Single
Pass
Multi
Pass
C25W
4
2.5 5.4
28,600 5.48 22,275 4.55 10.03
¾” ¾”
38¼” x 26¼” x 28¾” 225 245
C60W
9.6
6 13
57,423 4.80 43,025 3.83 8.63
1” 1”
38¼” x 26¼” x 28¾” 275 315
C90W
15
9 20
111,175 5.00 85,225 4.00 9.00
1” 1½”
38¼” x 26¼” x 28¾” 350 400
C125W
20
12.5 25
146,792 5.28 110,775 4.28 9.56
1” 1½”
49” x 31¼” x 38¼” 450 525
C185W
30
18.5 40
222,950 4.80 171,750 3.88 8.68
1½” 2”
49” x 31¼” x 38¼” 500 615
C250W
36
25 50
272,375 5.68 208,050 4.65 10.33
1½” 2”
61” x 38¼” x 51” 1,300 1,450
2'0"
2'0"
2'0"
1'6"
A
WATER CONNECTIONS
B
C
ELECTRICAL
SERVICE DOOR
SERVICE AREA
FRONT
REVISIONS
ZONE REV. DESCRIPTION DATE APPROVED
8
B
1
36
C
D
B
3 16
MATERIAL <NOT SPECIFIED>
1 OF 1
UNLESS OTHERWISE SPECIFIED:
1:12
TITLE:
C60W BASE CABINET
NAME
DATE
CHECKED
DRAWN
FINISH:
MATERIAL:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
1/16"
DECIMAL
0.02"
ANGULAR MACH
1/2°
ANGULAR BEND
1°
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
NYLE SYSTEMS LLC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF NYLE SYSTEMS
LLC IS PROHIBITED.
DEPT:
WEIGHT (lbs):
8 7 5 4 2
D
A
7 5 4
2
A
C
SCALE:
SHEET:
PART NO:
REVISION:
SHEET SIZE:
A-
B
SENGINEERING
51.26
EDITED
10/5/2017
