NZXT. 8

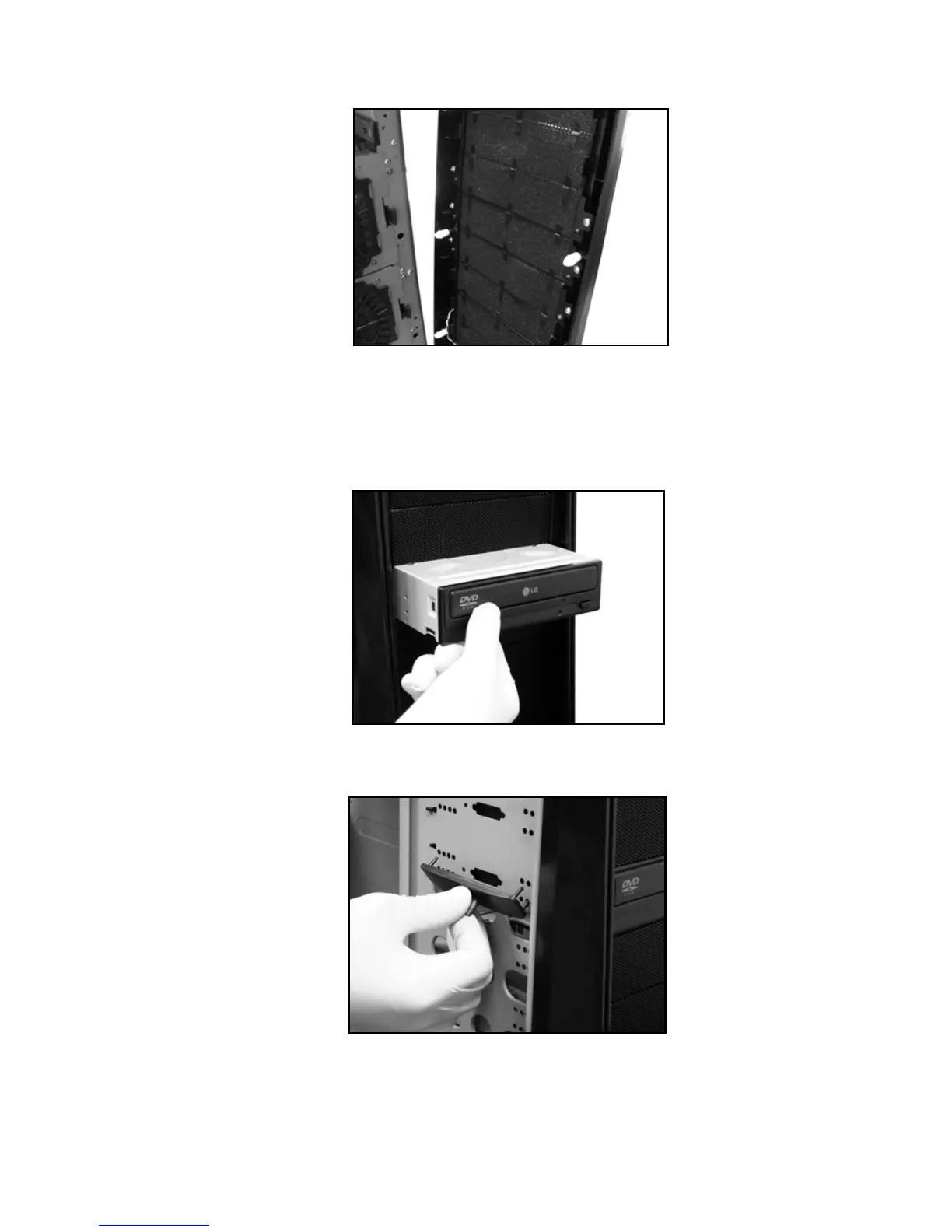

2. Remove the 5.25” black mesh for the 5.25” bay, by pushing
the clips aside from inside the panel or unscrewing the
screw (3 bays are screwed onto the panel)
3. Reattach the front panel.
4. Slide the 5.25” drive in from the front of the chassis.
Insert the 5.25” Device through the opening
5. Match the holes with the bay and the screw less bracket
Attach the screw less bracket matching the 5.25” holes
