Motherboard Installation
Please refer to the case interior infrastructure and secure the power
supply at the back of the case by using the screws provided.
1. Match the motherboard form factor ( ATX, M-ATX, Mini-
ATX ) with the holes on the motherboard tray
2. Secure the standoffs onto the holes which match your
motherboard
3. Lay the motherboard onto the standoffs and then
continue to secure the motherboard with the screws
provided.
LED, Power and Reset Installation
Please refer first to your motherboard manual to locate where the
power switch and reset pins are located. The power and reset
buttons are located at the top of the chassis. The colors following
each instruction designate the color of the wires.

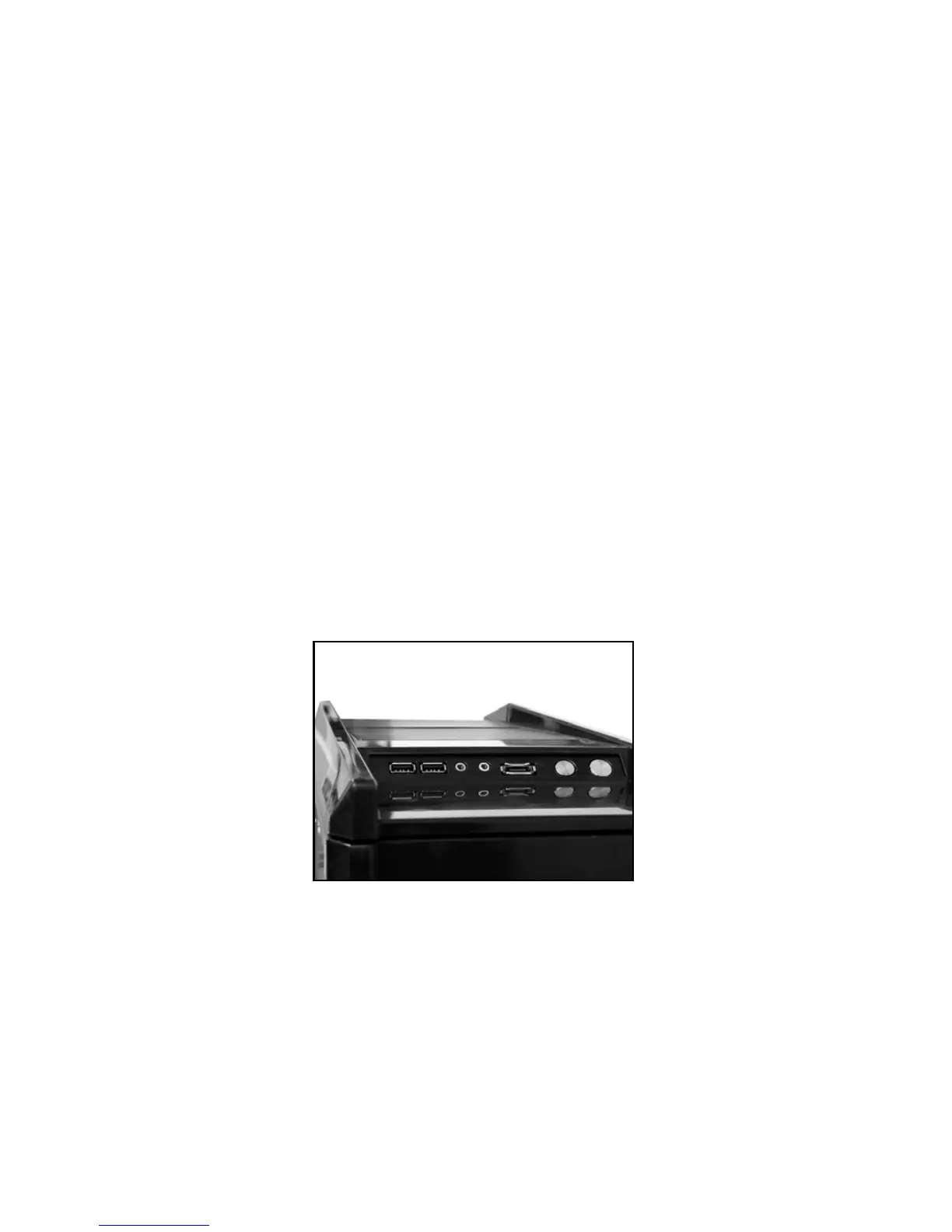

USB, Audio ports, E-SATA, Reset, and Power buttons
1. Connect the reset switch (labeled RESET SW) by
connecting to your motherboard RESET connector. Make
sure you always attach the white wire to ground. (Blue/White
+/-)
To Next Page
