Page 18 of 22
Appendix 3 (Accessories)

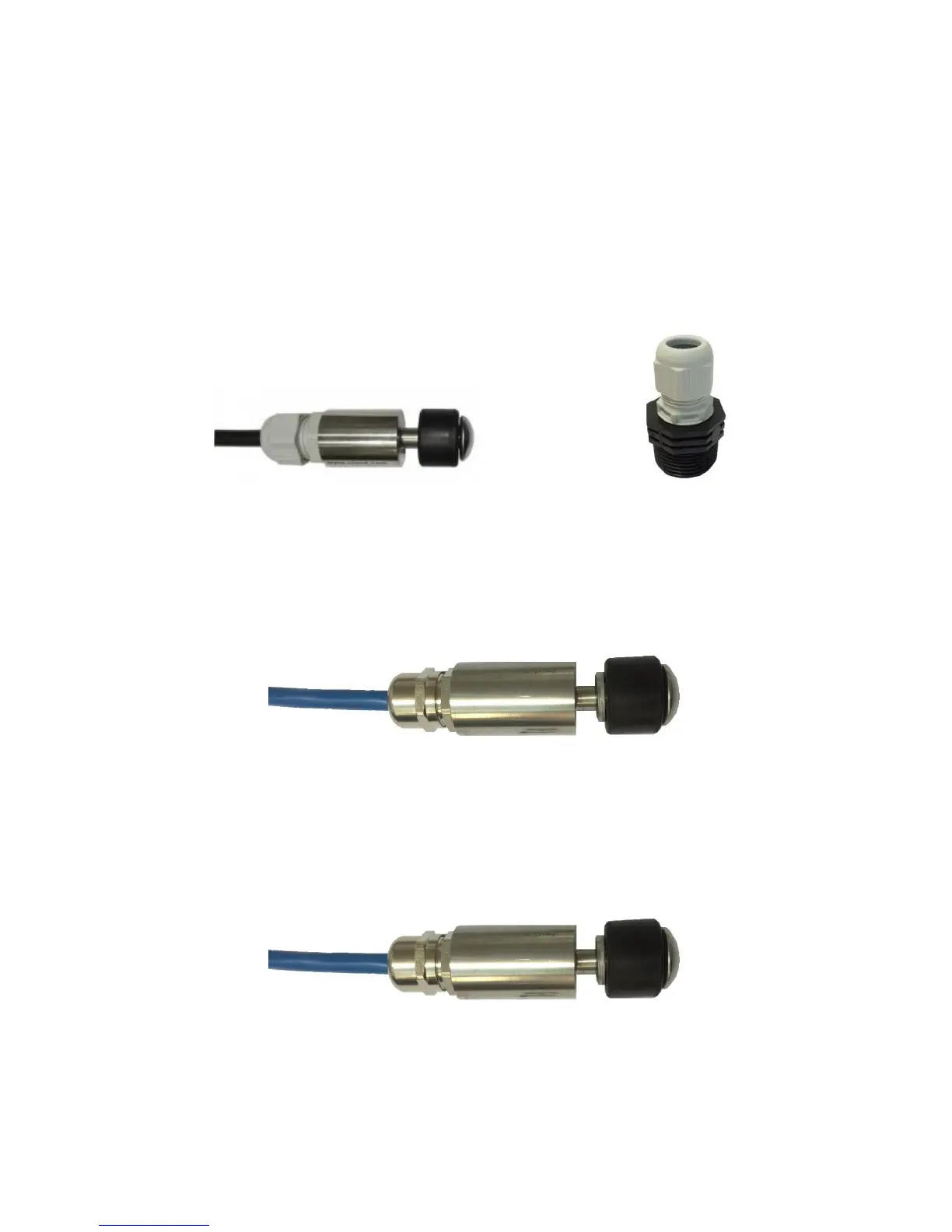

B8 – Bund Probe / Level Switch
The Bund Probe has an integral N/C (Normally Closed) level switch.
The Sensor body is made from 304 Stainless Steel and the cap is 316 Stainless Steel. The float is NBR
(Nitrile) which is good in Oil, Diesel, Petrol, most spirits and water based products (SG: 0.7 to 1.5).
The standard cable is Polyurethane sheathed and 6.0m in length and supplied with a 1” fitting.
Supplied as standard: N/C (Float Down – Contact Closed).
Supplied on request, reversed float N/O (Float Down – Contact Open, closed on float rise).
Simple 2 wire connection. See INPUT CONNECTIONS on Page 4 to show where to connect.
B8 - Bund Probe 1” Fitting (Also available as a separate item)
B2 – Water Sensor
The float sinks in less than a Specific Gravity of 0.9 and lifts in water and opens the circuit.
The Sensor body is made from 304 Stainless Steel and the cap is 316 Stainless Steel.
The float is NBR (Nitrile)
Simple 2 wire connection. See INPUT CONNECTIONS on Page 4 to show how where to connect.
B2 – Water Sensor
B2-T – Water and Temperature Sensor
This incorporates a B2 Water Sensor and a TP Temperature sensor with a temperature range of 0°C
to 70°C in one body.
Simple 4 wire connection. See INPUT CONNECTIONS on Page 4 to show where to connect.
B2-T – Water and Temperature Sensor
