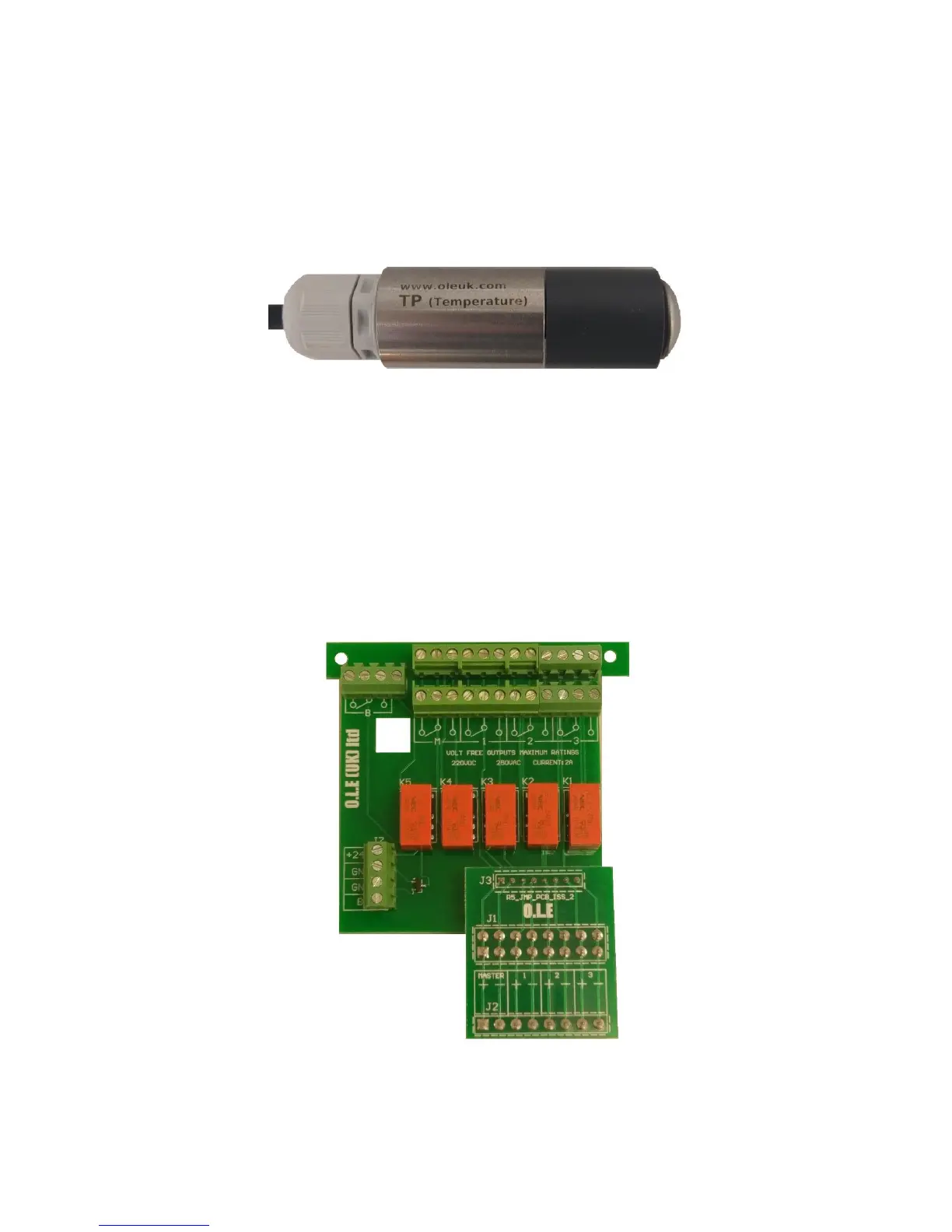

TP – Temperature Sensor
The temperature sensor is a thermistor housed in a 316 Stainless Steel body. The standard cable is
Polyurethane sheathed and 10.0m in length and supplied with a 1” fitting.
It measures the temperature of the fluid in the tank from 0°C to 70°C.
Not suitable for ATEX applications. This probe requires a second tank connection point.
Simple 2 wire connection. See INPUT CONNECTIONS on Page 4 to show where to connect.
TP – Temperature Sensor
R5 – Relay Module
The R5 – Relay module is a “Plug In” board that connects to the “Output Connections” header on the
main T5020 board. This allows 5 Volt Free switchable outputs. This board is supplied separate to the
gauges and is connected by the installer.
There are 2 sets of SPDT terminals for the 4 level settings and 1 x SPST terminals for the Bund / High
/ Water probe.
The switches are wires Com (C), Normally Open (N/O) and Normally Closed (N/C)
The contacts are rated ate 2A at 240VAC
Level settings can be factory set or by the installer using the Configuration Software.
R5 - Relay Module
