USB Programmer and Configuration Software
This kit allows the user to connect to the T5020 Gauge using a laptop or a desktop PC. The free
configuration software enables the user to set the Tank Shape / Size, Specific Gravity of the product,
RS485 NODE ID, Sensor Parameters, Alarm Trigger percentages and direction.
All possible settings are shown in the documentation included with the software.
Connectivity is USB 2.0. The “Dongle” connects to the Gauge via the Green 4-way connector block,
RS485 / Modbus. This software will operate with Windows XP, 7 and later versions.
The software and documentation is also available to download from the website.
See INPUT CONNECTIONS on Page 4 to show where to connect.

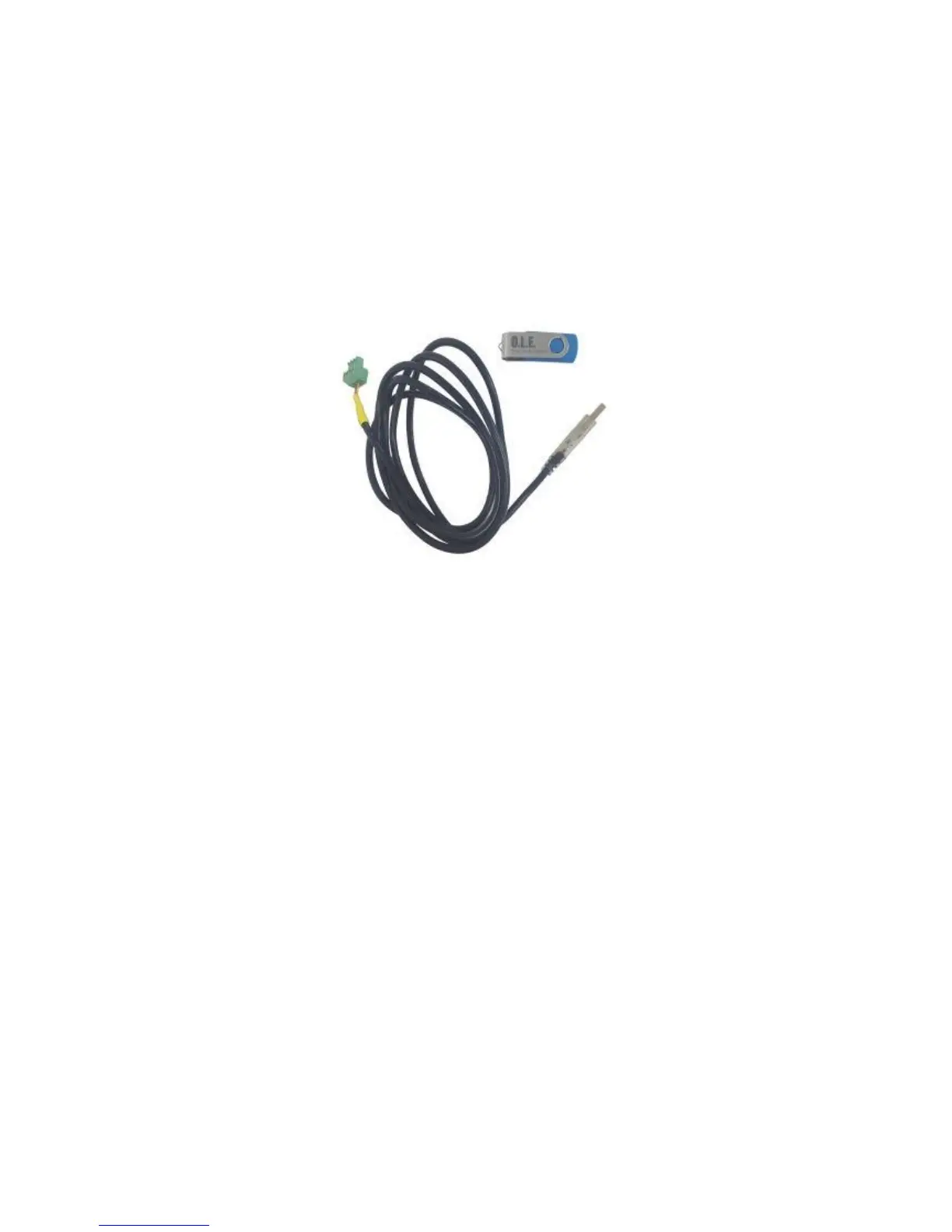

USB Programmer and Software.
