O.L.E. (UK) T4020 - Power and Probe Details; Power Input; Output Connections; Tank Level Probes

Page 5 of 22

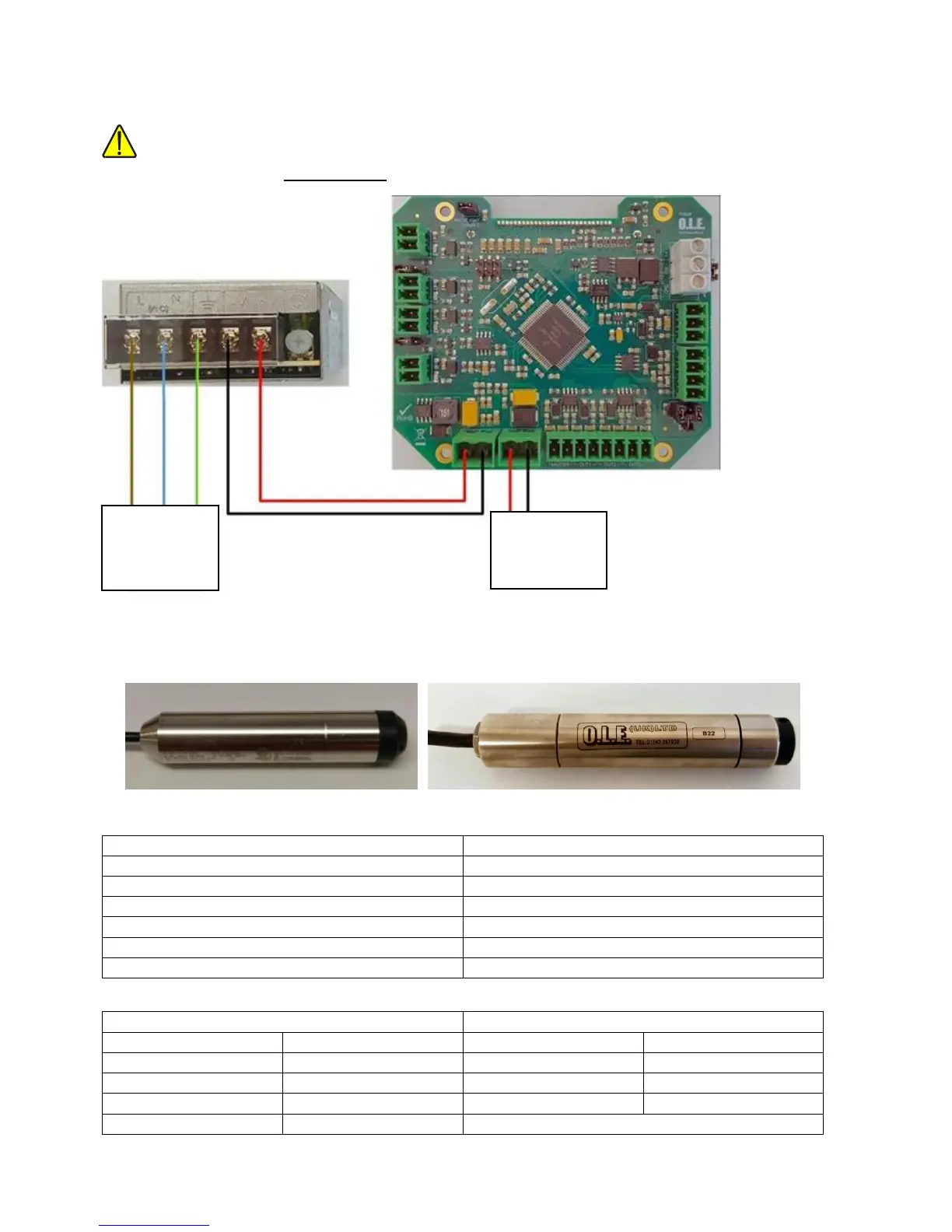

Power Input / Output Connections
WARNING
Before applying the power, DOUBLE CHECK all the connections to the inputs and outputs.
Tank Level Probes
Standard Probes Legacy Probes
Standard Probes
Legacy Probes
A12 / 3m = 3m Sensor with 10m of cable
A / B29 = 1.0m Sensor with 4m of cable
A14 / 5m = 5m Sensor with 10m cable
A / B30 = 1.5m Sensor with 4m of cable
A16 / 10m = 10m Sensor with 10m cable
A / B23 = 3.0m Sensor with 6m of cable
A18 / 20m = 20m Sensor with 20m cable
A / B25 = 5.0m Sensor with 7m of cable
A20 / 30m = 30m sensor with 30m cable
A / B26 = 7.0m Sensor with 10m of cable
A / B27 = 10.0m Sensor with 12m of cable
Standard Probes – Wire Colours
Legacy Probes – Wire Colours
Brown
+V
Red
+V
Green
Signal
Black
Signal
White
Not Used
Blue
Temperature +
Yellow
Temperature -
Legacy A Series Probes Do Not Have Temperature
100 – 240v AC
Maximum
Current - 0.7A
Power Pass
through from
Power Supply
