Installation Instructions

Mounting Holes

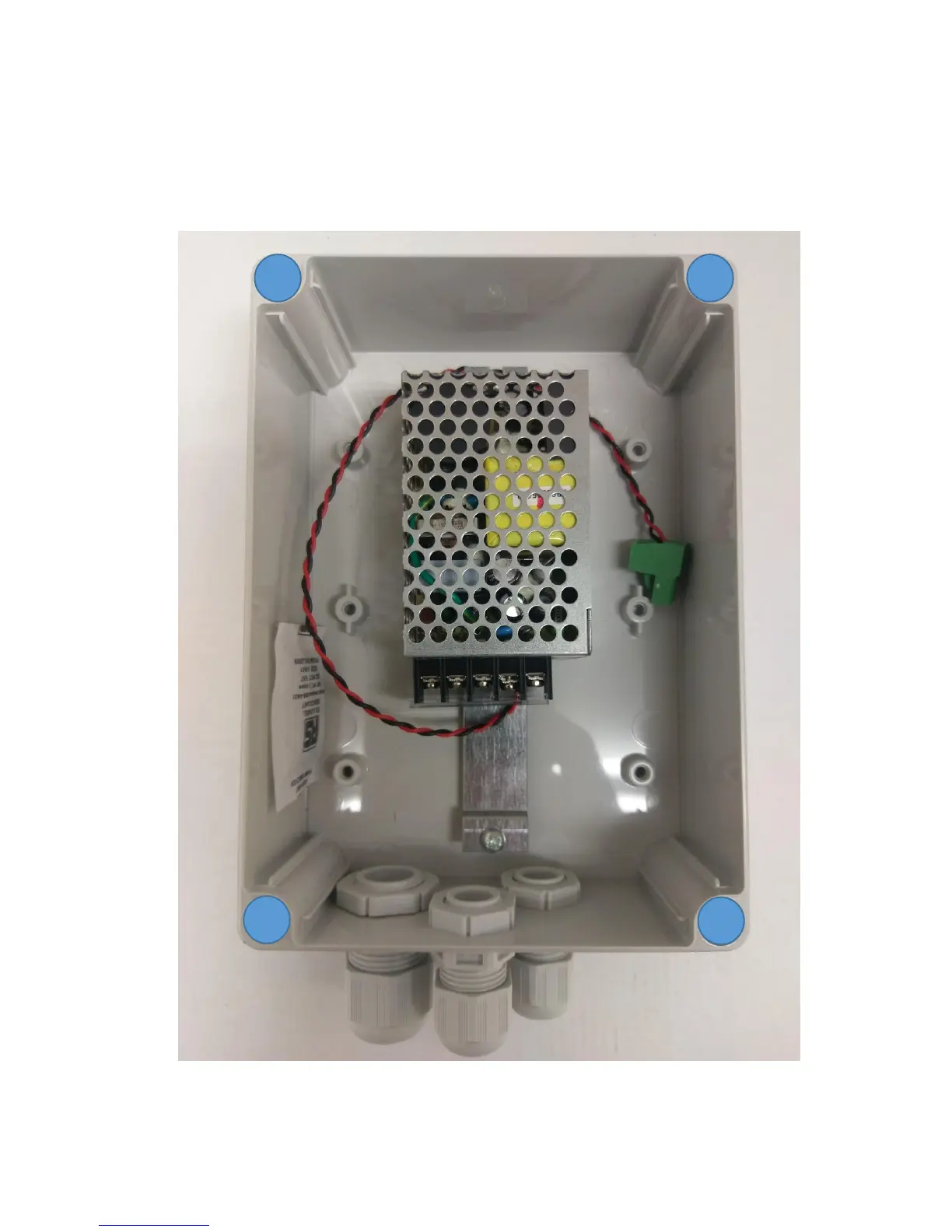

There are 4 mounting holes in the base of the unit (indicated with the Blue Circles).

These are located behind the front panel screws.

The distance between mounting holes is 110mm wide X 160mm high.
