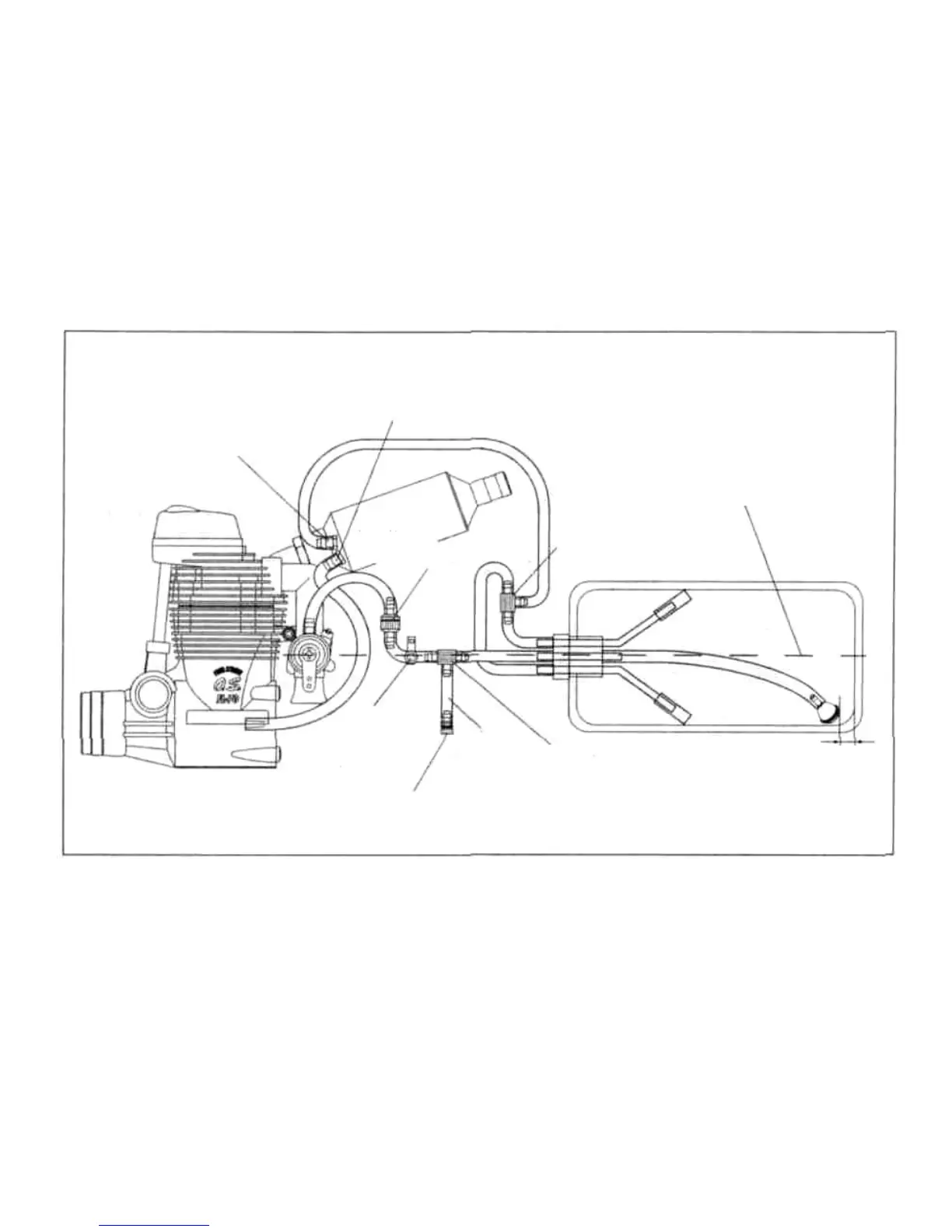

Fig. 2 Piping suitable for acrobatic flights
No.5 Nipple (smaller hole)
No.1 Nipple (larger hole)
Install the fuel tank so that carburetor
center line and fuel tank center line may
come to as much close as possible.
T Nipple (supplied)
Fuel Filter
(commercially available)
Fuel Stopper
(commercially
available)
Refueling
tubing
T Nipple
(commercially available)
Approx. 10mm
Plug (commercially available)
20
To Next Page
