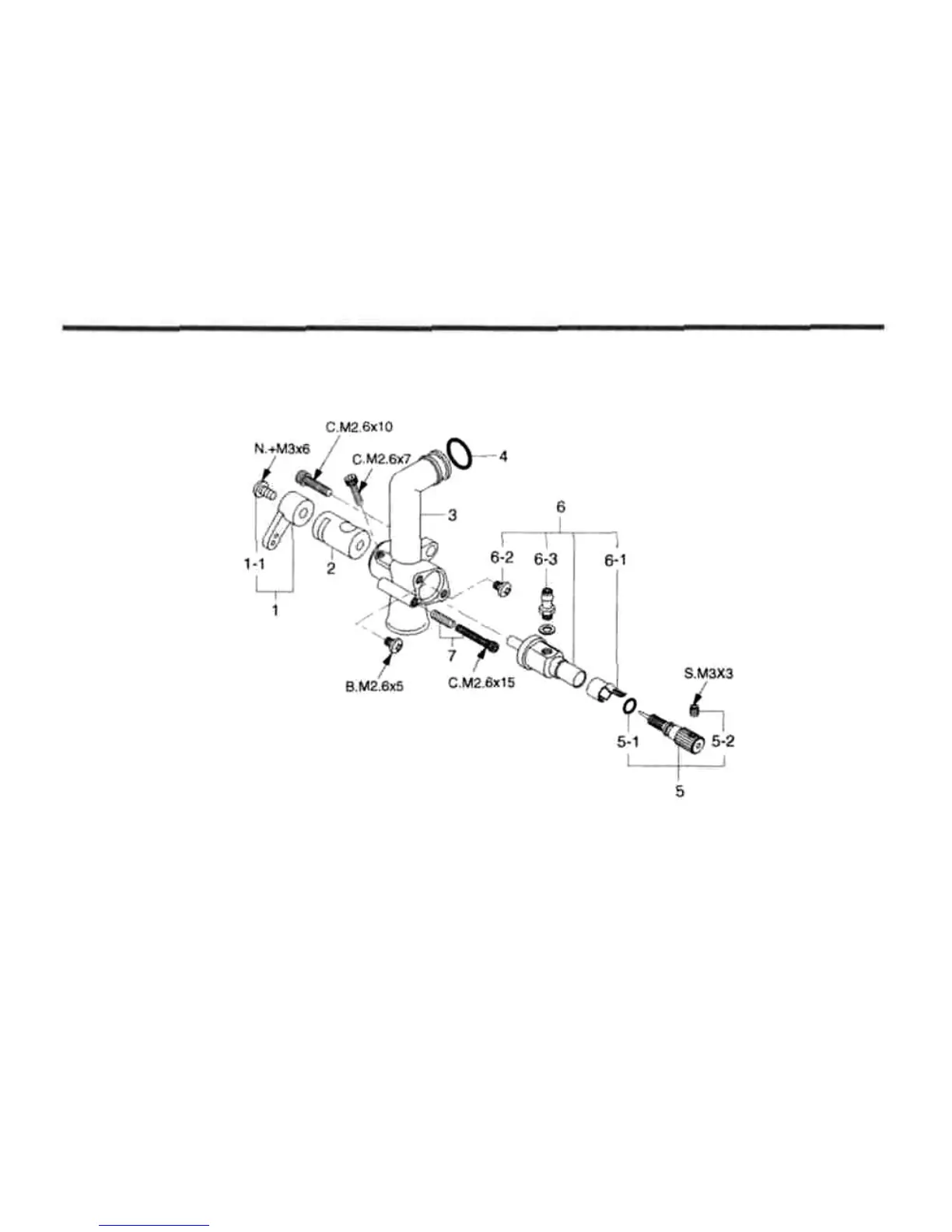

CARBURETOR EXPLODED VIEW
*
Type of screw
C Cap Screw B Binding Head Screw M Oval Fillister-Head Screw
F...Flat Head Screw N. Round Head Screw S .Set Screw
40
