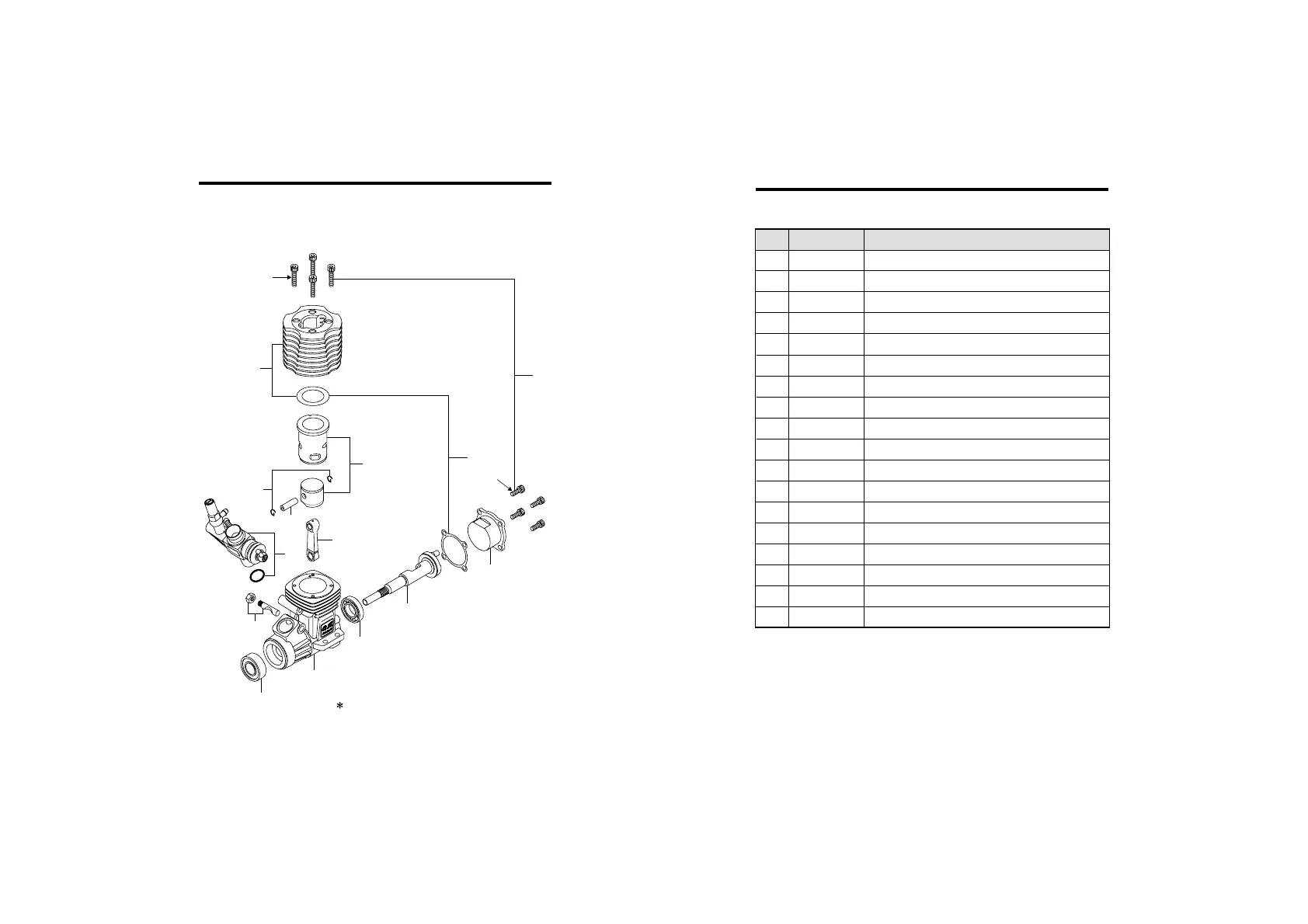

15CV-R(P) EXPLODED VIEW
Type of screw
C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
1
C.M2.6x12
2
3
4
5
6
7
8
9
10
11
12
13
14
C.M2.6x7
29
15CV-R(P) ENGINE PARTS LIST
The specifications are subject to alteration for improvement without notice.
No.
Code No.
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
72403120
72403210
21257000
21514010
21252020
21230020
72403200
71608001
21213000
21501030
22631020
21481700
21286000
21255000
21817000
21806000
21503050
21504600
102 Cleaner Body
101,102 Filter Elements (6pcs.)
Super Air Cleaner 102 (W/3 filter elements)
Screw Set
Glow Plug No.8
Gasket Set
Crankshaft
Crankshaft Ball Bearing (Rear)
Crankcase
Crankshaft Ball Bearing (Front)
Carburetor Retainer
Carburetor Complete (Type 10C)
Connecting Rod
Piston Pin Retainer(2pcs.)
Piston Pin
Cylinder & Piston Assembly
Heatsink Head
Cover Plate
