2 DISPLAY & KEYPAD FUNCTIONS
2.1 Display
The meter has a large custom LCD that consists of 4-digit segments and
operation annunciators for uS/mS (or ppm/ppt for TDS 6 meter) and °C
(Temperature). Other annunciators include “HO” (when the HOLD function is
activated) and “LO” (low battery condition). See Figure below.
pptm
HO LO
%
m
S
µ
1
2
3
4
5
67
C°

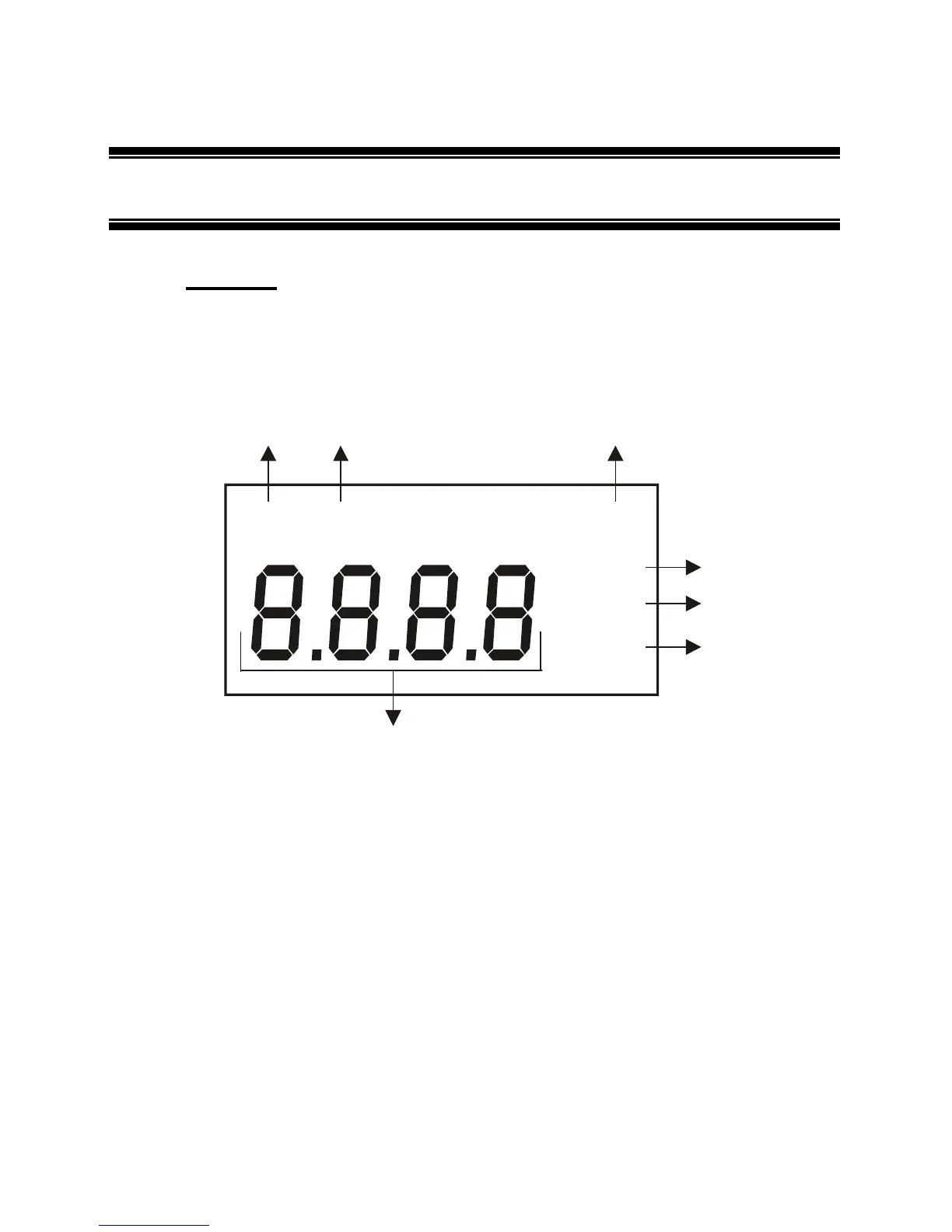

LCD and Customized Annunciators for CON 6/TDS 6 meter
1. Primary display 4. Temperature indicator
2. Parts Per Million (ppm) or Parts
Per Thousand (ppt) indicator -
available for TDS 6 meter only.
5. Percentage indicator for
Temperature Coefficient.
3. milli-Siemens/cm (mS) or micro-
Siemens/cm (µS) indicator -
available for CON 6 meter only.
6. Low battery indicator.
7. Hold (freezed) reading indicator.
