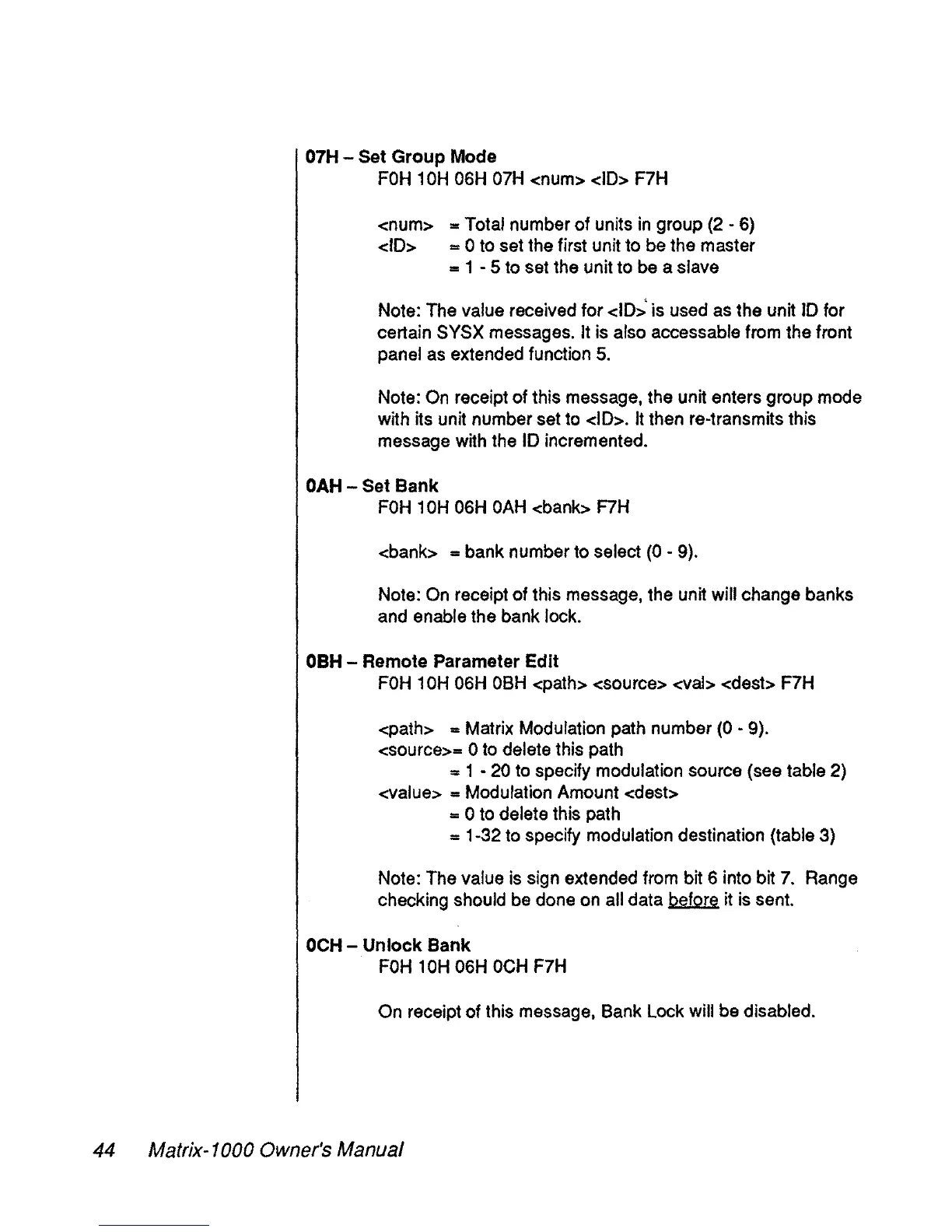

07H - Set Group Mode
FOH
10H
06H
07H
-enurns
<ID>
F7H
-enums
= Total number of units
in
group
(2
-
6)
<ID> = 0 to set the first unit to
be
the master
= 1 - 5
to
set the unit to
be
a slave
Note:
The
value received for
<ID;
ls
used
as
the unit
ID
for
certain
SYSX
messages. It is also accessable
from
the front
panel
as
extended function
5.
Note:
On
receipt of this message, the unit enters group
mode
with its unit number set
to
<ID>.
It
then re-transmits this
message
with
the
ID
incremented.
OAH
- Set Bank
FOH
10H
06H
OAH
<bank>
F7H
<bank> = bank number to select
(0
-
9).
Note:
On
receipt of this message, the unit will change banks
and
enable the bank lock.
OBH
- Remote Parameter Edit
FOH
10H
06H
OBH
-epath»
<source> <val>
-edest»
F7H
-epath»
= Matrix Modulation path number
(0
-
9).
-esourcec-»
0
to
dei
ete
this
path
= 1 -
20
to
specify modulation source
(see
table 2)
<value>
= Modulation Amount
-edest»
= 0
to
delete this
path
= 1-32
to
specify modulation destination (table 3)
Note:
The
value
is
sign
extended
from
bit 6 into bit
7.
Range
checking should
be
done
on
ail data
befQre
it
is
sent.
OCH
- Unlock Bank
FOH
1
OH
06H
OCH
F7H
On
receipt of this message, Bank
Lock
will
be
disabled.
