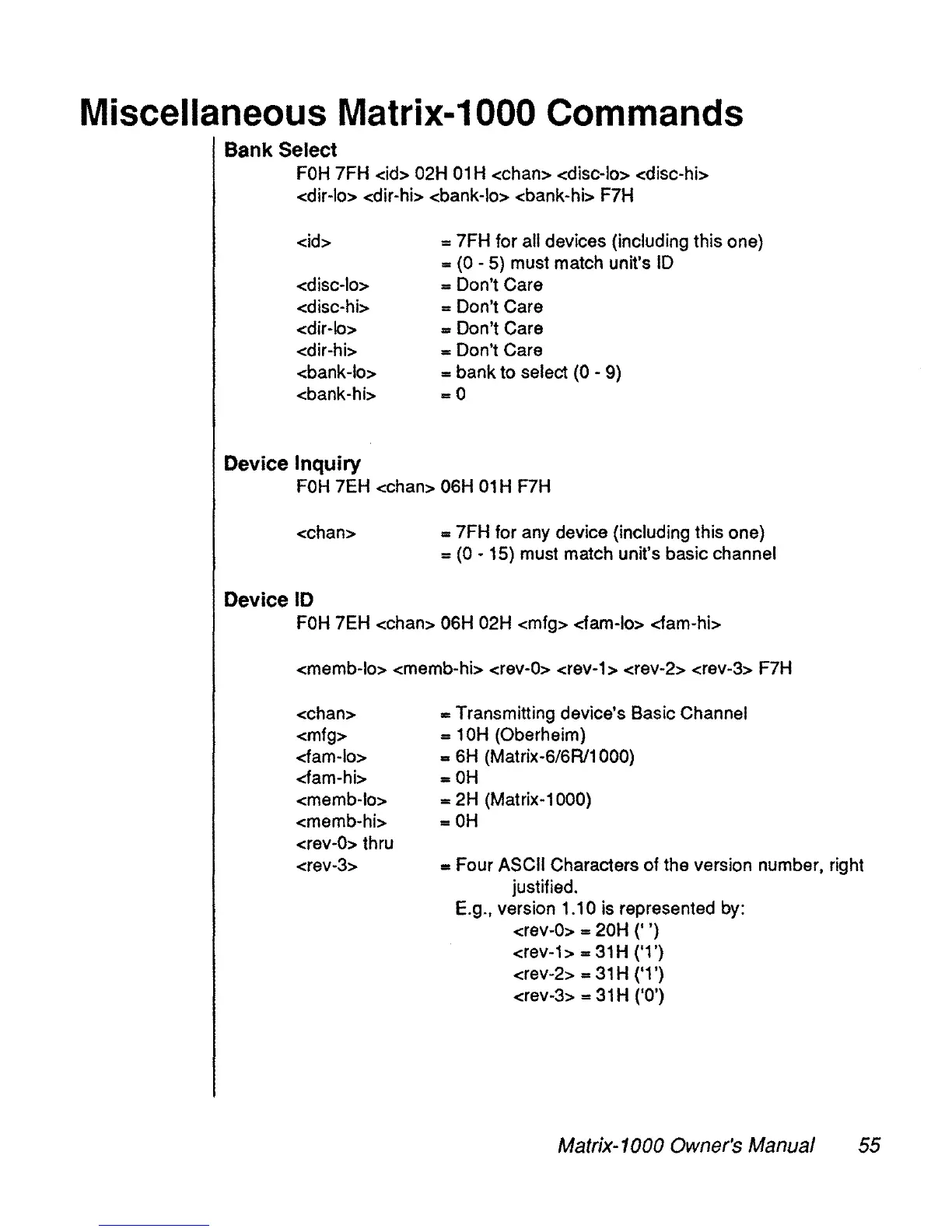

Miscellaneous Matrix-1000 Commands
Bank Select
FOH 7FH <id> 02H 01 H <chan> -edlsc-los -edlsc-hb-
-edir-lœ- -edlr-hb- -ebank-lœ- <bank-hi> F7H
<id>
-edisc-lœ-
-cdisc-hb-
-cdir-lœ-
-edir-hb-
«bank-los,
<bank-hi>
= 7FH for ail devices (including this one)
= (0
- 5) must match unit's ID
= Don't Care
= Don't Care
=
Don't Care
= Don't Care
= bank to select
(0 - 9)
=0
Deviee Inquiry
FOH 7EH <chan> 06H 01 H FlH
<chan>
= 7FH for any device (including this one)
=
(0 - 15) must match unit's basic channel
Deviee ID
FOH 7EH <chan> 06H 02H <mfg> <fam-Io> <fam-hi>
-ememb-los -crnernb-hb- <rev-O> -erev-t» <rev-2> <rev-3> F7H
<chan>
<mfg>
-darn-lœ-
-darn-hb-
-ememb-lo»
-emernb-hb-
-erev-O» thru
<rev-3>
= Transmitting device's Basic Channel
= 10H (Oberheim)
= 6H (Matrix-6/6R11000)
=OH
=2H (Matrix-1000)
=OH
= Four ASCII Characters of the version number, right
justified.
E.g., version 1.10 is represented
by:
erev-o» = 20H (' ')
-erev-t» =
31 H ('1 ')
<rev-2> =
31 H ('1')
<rev-3> =
31 H ('0')
Matrix-1000 Owner's Manua/ 55
