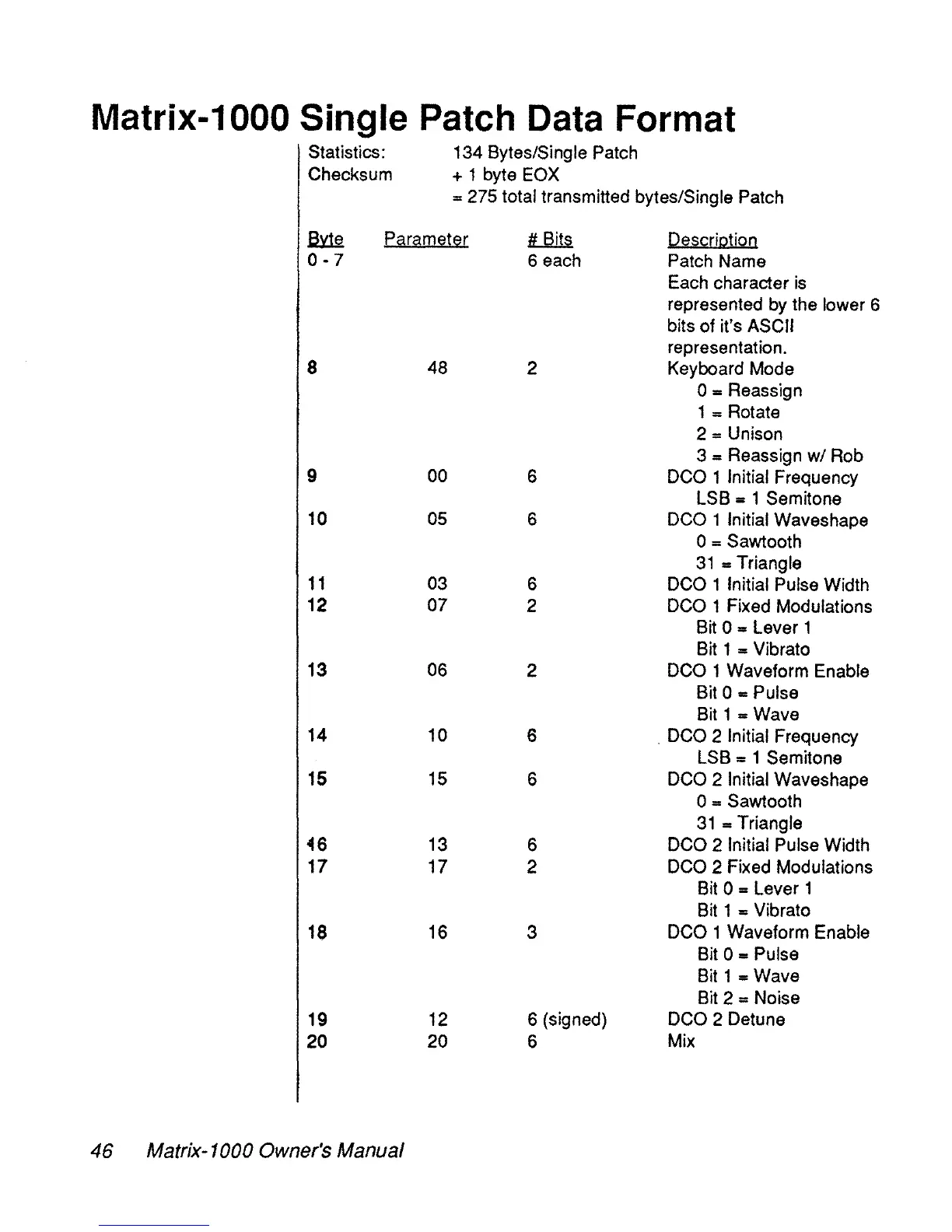

Matrix-1000 Single Patch Data Format
Statistics: 134 Bytes/Single Patch
Checksum + 1 byte EaX
= 275 total transmitted bytes/Single Patch
~
Parameter
li Bits
DescriQtjoQ
0-7
6 each
Patch Name
Each character is
represented by the lower 6
bits of
ifs ASCII
representation.
8 48
2
Keyboard Mode
0= Reassign
1 = Rotate
2 = Unison
3 = Reassign w/
Rob
9 00
6
DCa 1 Initial Frequency
LSB = 1 Semitone
10
05
6
DCa 1 Initial Waveshape
0= Sawtooth
31 = Triangle
11
03
6
DCa 1 Initial Pulse Width
12 07
2
DCa 1 Fixed Modulations
Bit 0 = Lever 1
Bit 1 = Vibrato
13
06
2 DCa 1 Waveform Enable
Bit 0 = Pulse
Bit 1 = Wave
14 10
6
. DCa 2 Initial Frequency
LSB = 1 Semitone
15
15
6 DCa 2 Initial Waveshape
0= Sawtooth
31 = Triangle
046 13
6 DCa 2 Initial Pulse Width
17
17 2 DCa 2 Fixed Modulations
Bit 0 = Lever 1
Bit 1 = Vibrato
18
16 3 DCa 1 Waveform Enable
Bit 0 = Pulse
Bit 1 = Wave
Bit 2 = Noise
19
12
6 (signed) DCa 2 Detune
20 20 6
Mix
46 Matrix-1000 Owner's Manual
