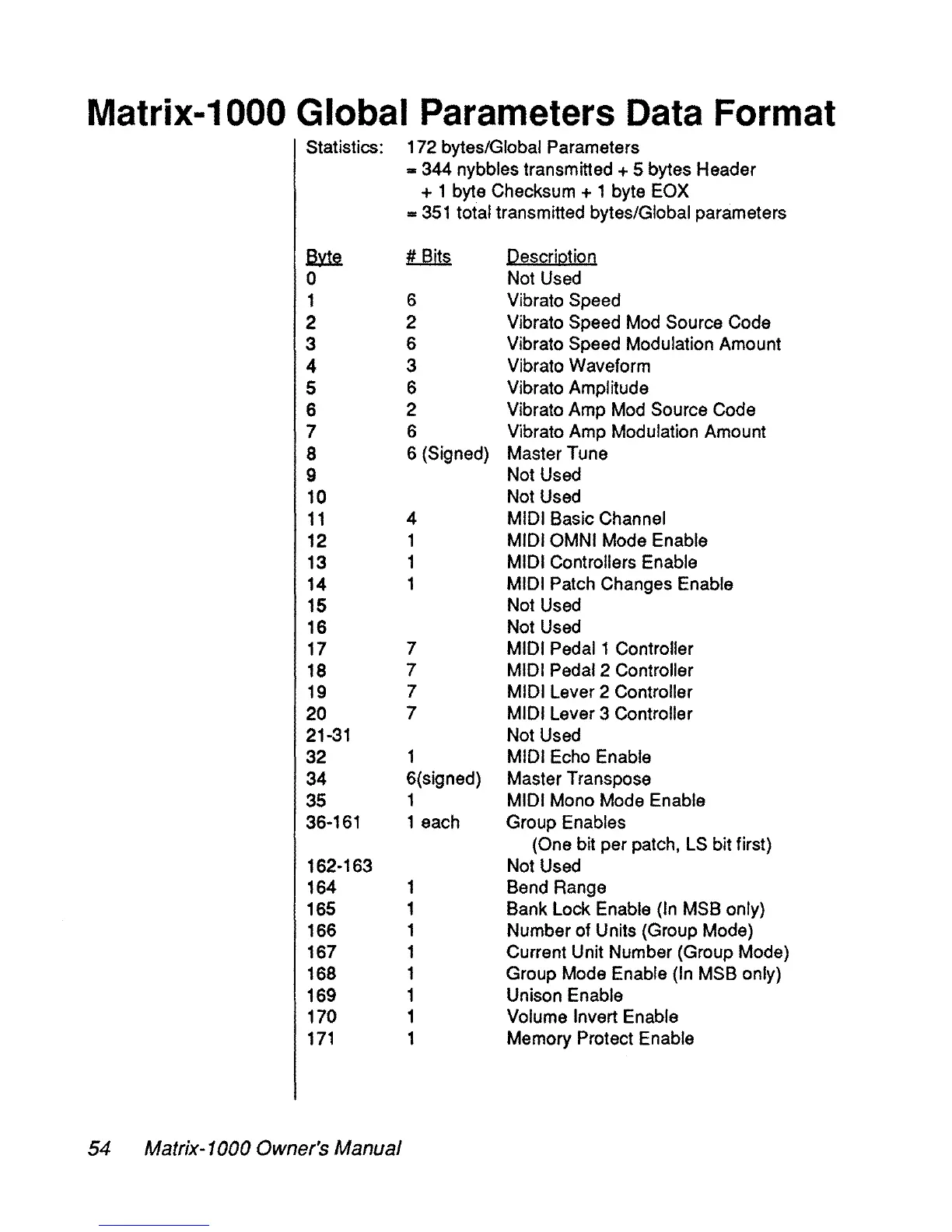

Matrix-1000 Global Parameters Data Format
Statistics: 172 bytes/Global Parameters
.. 344 nybbles transmitted
+ 5 bytes Header
+ 1 byte Checksum + 1 byte EOX
.. 351 total transmitted bytes/Global parameters
~
tt Bit~
DescriQtion
0
Not
Used
1
6
Vibrato Speed
2
2 Vibrato Speed
Mod Source Code
3
6 Vibrato Speed Modulation Amount
4
3
Vibrato Waveform
5
6 Vibrato Amplitude
6
2 Vibrato
Amp Mod Source Code
7
6 Vibrato
Amp Modulation Amount
8
6 (Signed) Master Tune
9
Not
Used
10
Not Used
11
4 MIDI Basic Channel
12
1
MIDI OMNI Mode Enable
13
1
MIDI Controllers Enable
14
1
MIDI Patch Changes Enable
15
Not
Used
16
Not
Used
17
7 MIDI
Pedal 1 Controller
18
7
MIDI Pedal 2 Controller
19
7
MIDI Lever 2 Controller
20
7
MIDI Lever 3 Controller
21-31 Not Used
32
1
MIDI Echo Enable
34
6(signed)
Master Transpose
35
1
MIDI Mono Mode Enable
36-161
1 each
Group Enables
(One bit per patch, LS bit first)
162-163
Not Used
164
1
Bend Range
165 1
Bank Lock Enable
(In MSB only)
166
1
Number of Units (Group Mode)
167 1 Current Unit Number (Group Mode)
168
1 Group
Mode Enable (In MSB only)
169 1 Unison Enable
170 1 Volume Invert Enable
171 1
Memory Protect Enable
54 Matrix-1000 Owner's Manual
