Oceanic Sauna Heater
4

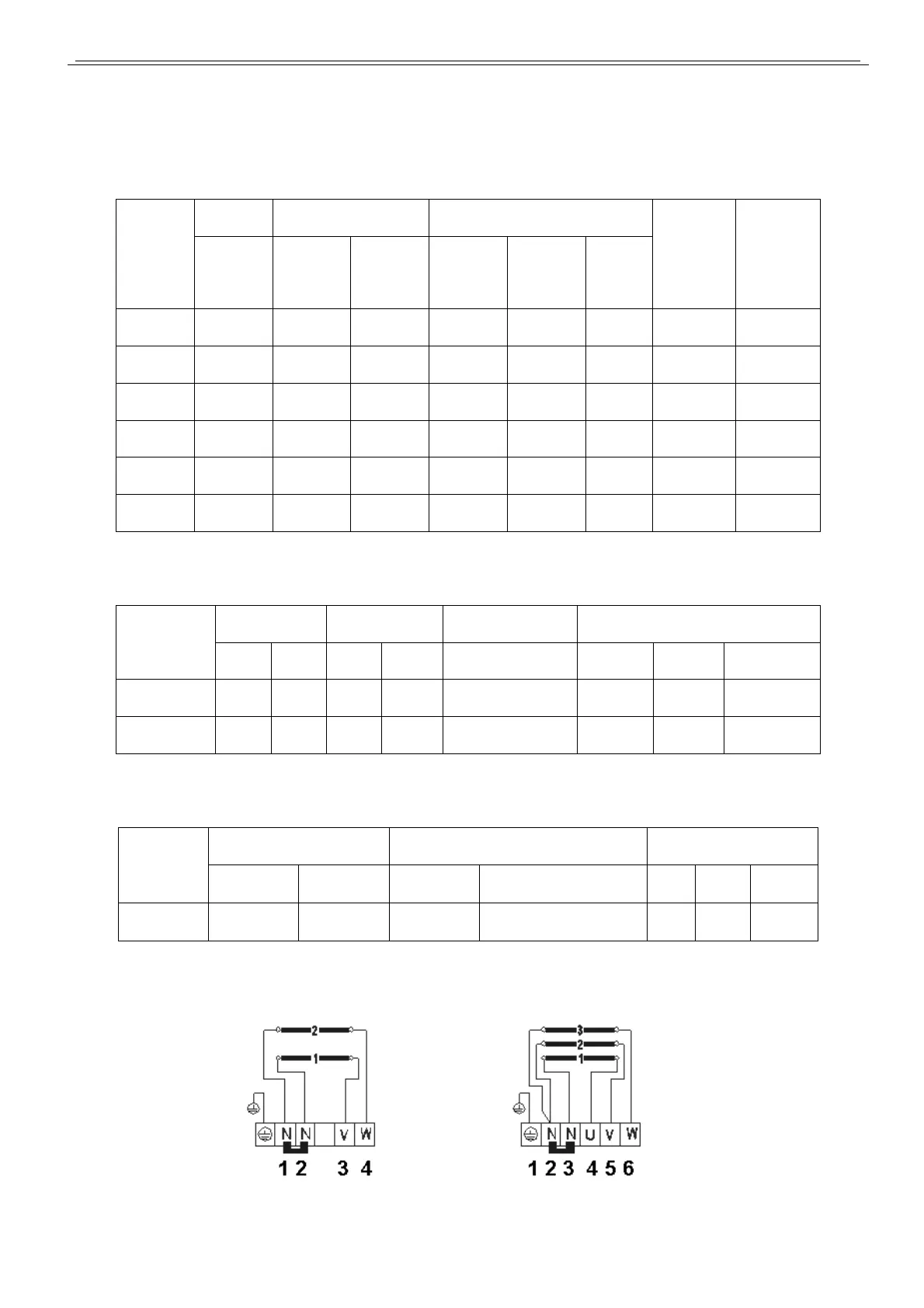

Chapter One: Specification
1. Parameter and size of sauna heater (chart 1)
Chart 1
Model
Power Input Size (mm) Heat
element
quantity
Sauna
stone
(Kg)
(Kw) 1N~ 3N~ L W H
0CS30
3.0 230V 410 280 570 2 12-14
0CS40
4.0 230V 410 280 570 2 13-15
OCS45
4.5 230V 400 410 280 570 3 14-16
OCS60
6.0 230V 400 410 280 570 3 16-18
OCS80
8.0 230V 400 410 280 570 3 18-20
OCS90
9.0 230V 400 410 280 570 3 18-20
2. Parameter and size of OC-SA controller (chart 2)
Chart 2
Model
Input Output Load power Size (mm)
1N~ 3N~ 1N~ 3N~ (Kw) L W H
OC-SA I
230V
230V
3~4 248 217 78
OC-SA II
230V
400V
230V
400V 4.5~9 280 217 78
3. Parameter and size of temperature sensor (chart 3)
Chart 3
Model
Detected scope Cut off on high temperature Size (mm)
o
C
o
F
o
C
o
F L W H
OC-S 0~110 32~230 120 248 76 42 27
4. Circuit Diagram for sauna heater and controller
i. Sauna heater circuit diagram (Fig 1)
(Fig 1)
OC30~OC40 Circuit diagram OC45~OC90 Circuit diagram
