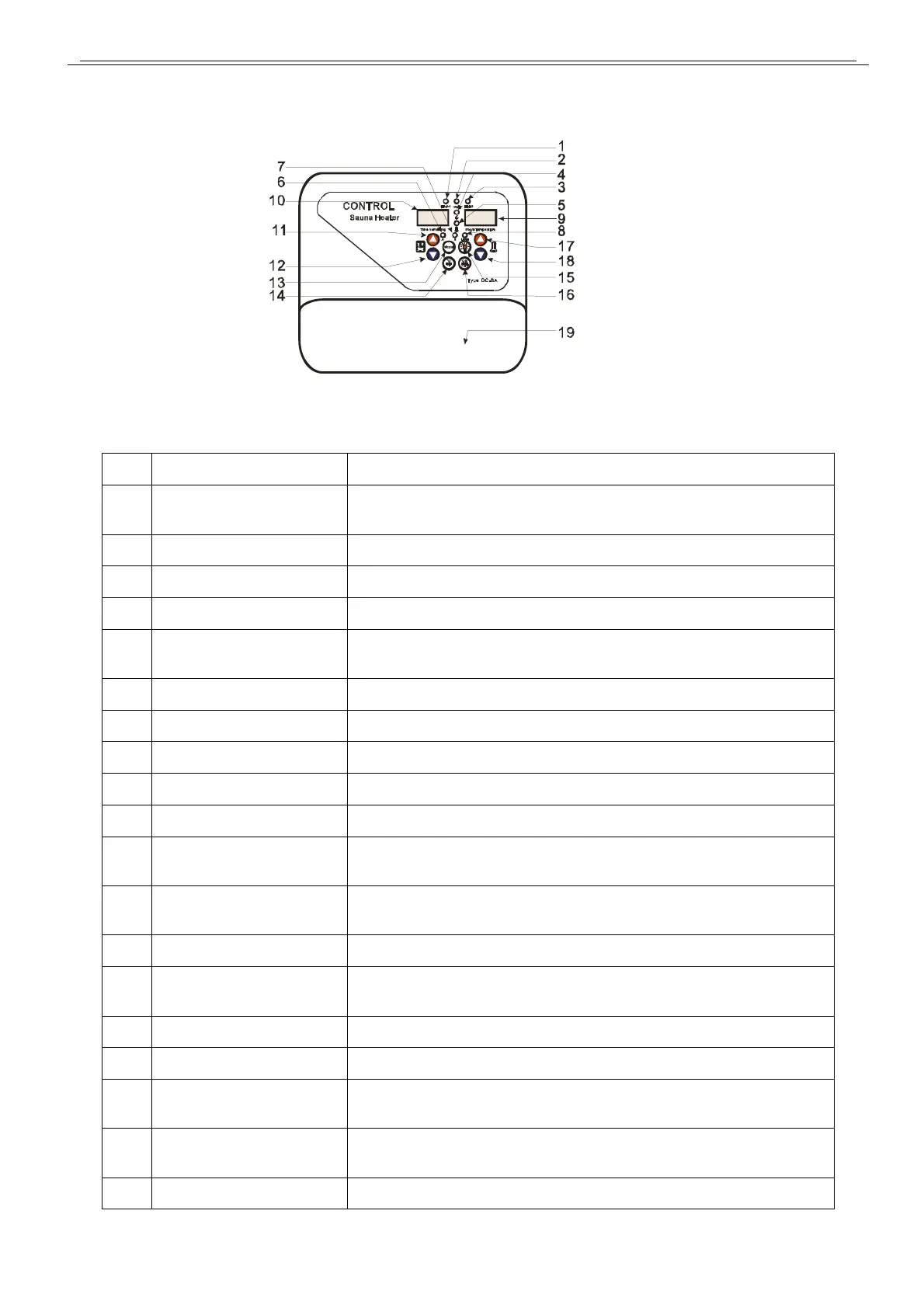

2. Controller frame and parts
• Controller frame (Fig 5)
(Fig 5)
• Keys and LED instruction (Chart 5)
Chart 5
No. Parts Description
1 High1 LED
Indicator LED on when sauna over heats (serious hazard)
(Reset Manually)
2 Wait LED
Indicator LED when timer is on (B Model)
3 High Heat 2
Only for use in U.S.A, ignore if it doesn’t apply to you.
4 Heating LED
Indicator LED on when heating
5 Heat preservation LED
Indicator LED for Heat preservation (one element remains
on)
6 A model LED
Indicator LED for A model when heater is on
7 B model LED
Indicator LED B model, means sauna heater is a timer
8 Light LED
Indicator LED when lamp is on in sauna room
9 Temp display windows
Displays the temperature of sauna room
10 Time display window
Displays the time remaining for the timer or heating.
11
“▲”
Increase button
12
Time decrease button or
“▼”
Decrease button
13 Model switch button
Switch between timer and heating program
14
o
C /
o
F button
Switch the temperature display between centigrade and
Fahrenheit
15 Light
Push for a few seconds to turn on the light in sauna room
16 ON/OFF
Push to turn the heater On or Off
17
Temp Increase button
“▲”
Increase button
18
Temp decrease button
“▼”
Decrease button
19 Controller shell
Protects the electronics from damage or users injury.
