12
MAX
PSI
10 2005
ATR
FEET
O
2
N
2
ALPHA / NUMERIC DISPLAYS
Cylinder Pressure Display
Cylinder Pressure (Fig 6a) is displayed any time the Pro Plus 2
is connected to a pressurized cylinder and in an active
operating mode.
Values of pressure are displayed numerically from 10 PSI (.5
BAR) up to 5000 PSI (352 BAR) in increments of 10 PSI (.5
BAR).
Depth Displays
During a dive, the
Current Depth
display (Fig. 6b), indi-
cates depths from 0 to 330 feet (99.9 meters) in 1 foot (.1
meter) increments.
By pressing the Left (Advance) button, the
Maximum Depth
reached during that dive will be displayed in the center/left
portion of the display (Fig. 6c).
During a Decompression Dive, the required
Ceiling Stop
Depth
is displayed in the center of the screen. Maximum
Depth can be viewed by pressing the Left (Advance) button.

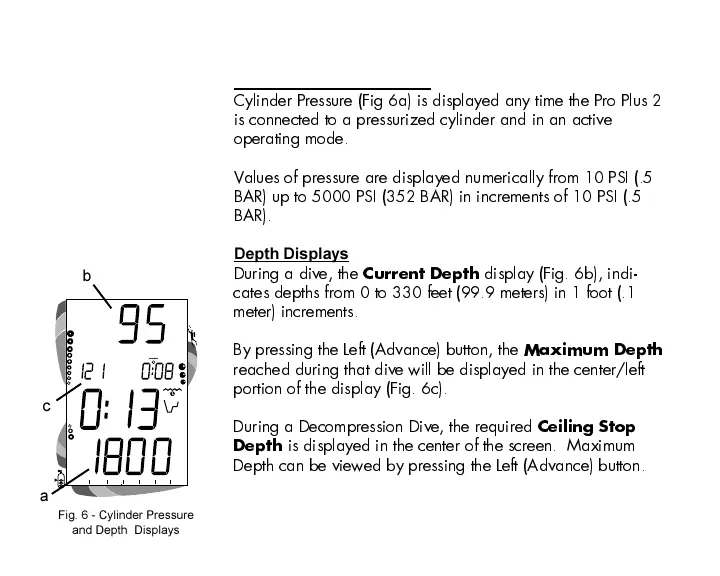

Fig. 6 - Cylinder Pressure
and Depth Displays
c
b
a
