SURFACE MODE

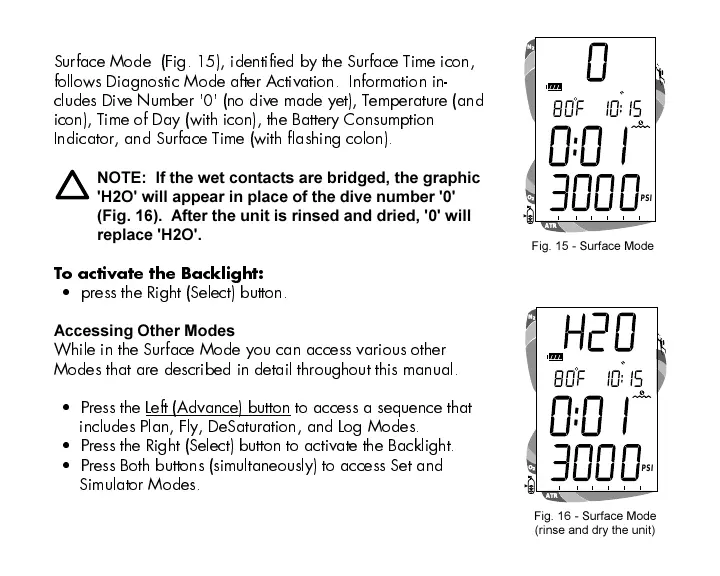

Surface Mode (Fig. 15), identified by the Surface Time icon,
follows Diagnostic Mode after Activation. Information in-
cludes Dive Number '0' (no dive made yet), Temperature (and
icon), Time of Day (with icon), the Battery Consumption
Indicator, and Surface Time (with flashing colon).
NOTE: If the wet contacts are bridged, the graphic
'H2O' will appear in place of the dive number '0'
(Fig. 16). After the unit is rinsed and dried, '0' will
replace 'H2O'.
To activate the Backlight:
press the Right (Select) button.
Accessing Other Modes
While in the Surface Mode you can access various other
Modes that are described in detail throughout this manual.
Press the Left (Advance) button to access a sequence that
includes Plan, Fly, DeSaturation, and Log Modes.
Press the Right (Select) button to activate the Backlight.
Press Both buttons (simultaneously) to access Set and
Simulator Modes.
Fig. 15 - Surface Mode
Fig. 16 - Surface Mode
(rinse and dry the unit)
PSI
ATR
O
2
N
2
