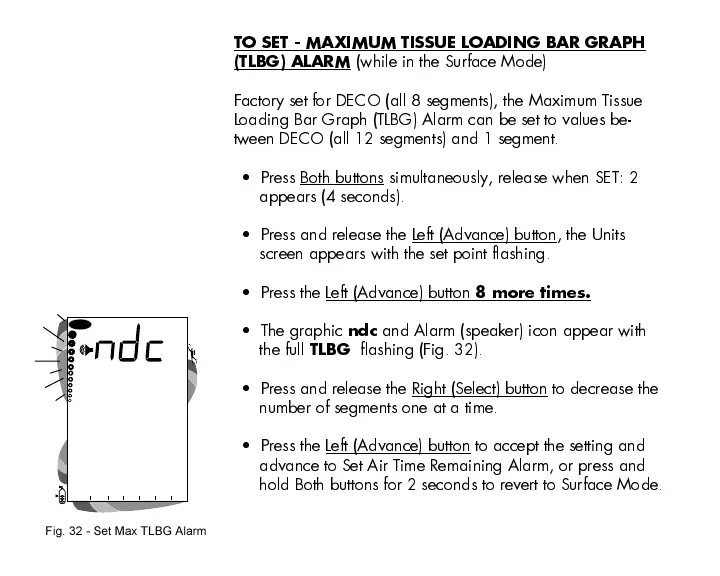

TO SET - MAXIMUM TISSUE LOADING BAR GRAPH
(TLBG) ALARM
(while in the Surface Mode)
Factory set for DECO (all 8 segments), the Maximum Tissue
Loading Bar Graph (TLBG) Alarm can be set to values be-
tween DECO (all 12 segments) and 1 segment.
Press Both buttons simultaneously, release when SET: 2
appears (4 seconds).
Press and release the Left (Advance) button, the Units
screen appears with the set point flashing.
Press the Left (Advance) button
8 more times.
The graphic
ndc
and Alarm (speaker) icon appear with
the full
TLBG
flashing (Fig. 32).
Press and release the Right (Select) button to decrease the
number of segments one at a time.
Press the Left (Advance) button to accept the setting and
advance to Set Air Time Remaining Alarm, or press and
hold Both buttons for 2 seconds to revert to Surface Mode.
Fig. 32 - Set Max TLBG Alarm
