The added Penalty (decompression) Time will have to be
'worked off' first, before obtaining off-gassing credit. Once
the Penalty Time is worked-off, and off-gassing credit begins,
required decompression Stop Depths and Time will decrease
toward zero. The Tissue Loading Bar Graph will recede into
the yellow Caution Zone and the Pro Plus 2 will revert to the
No Decompression Dive Mode.
NOTE: Upon entry into the following 3 Delayed
Violation Modes, the red LED warning light will
light and the Audible Alarm will sound, even if Set
OFF. The Alarm cannot be acknowledged (si-
lenced) by pressing the Left (Advance) button.
Delayed Violation Mode #1 (Fig. 61)
(This is a continuation of a Conditional Violation.)
If you remain above the Required Ceiling Stop
Depth for more than 5 minutes,
the full Tissue Loading
Bar Graph and Total Ascent Time will flash until you descend
below the Required Stop Depth.

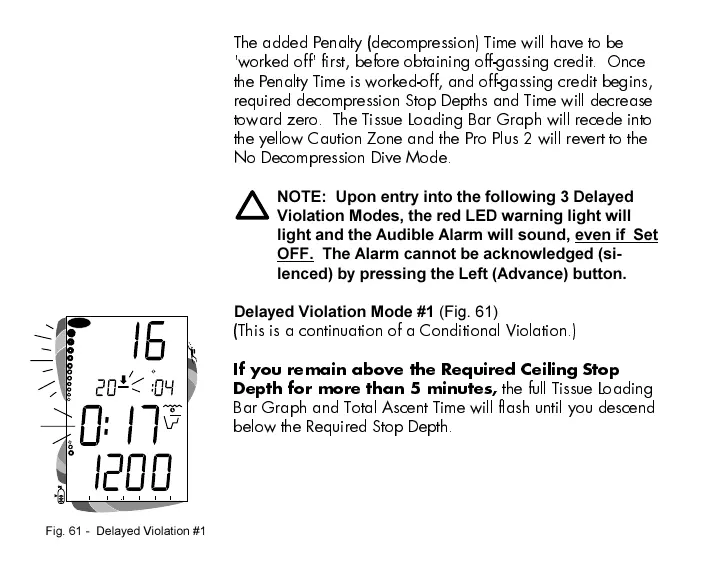

Fig. 61 - Delayed Violation #1
