68

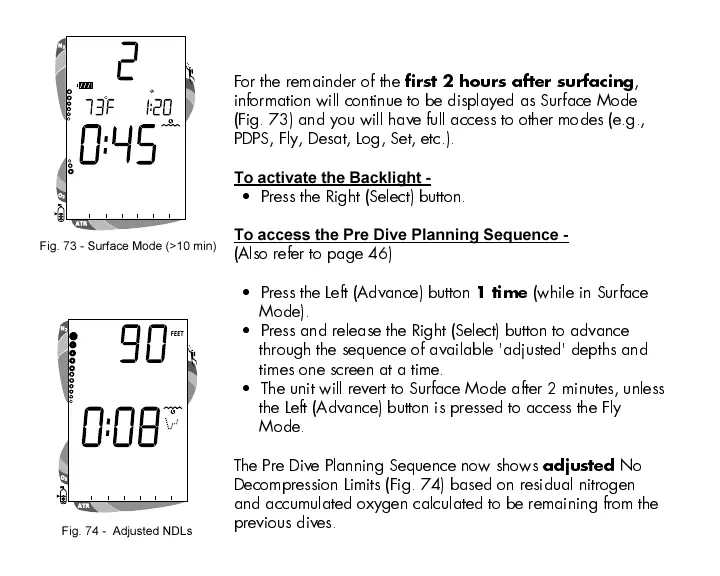

AFTER THE TRANSITION PERIOD (THE FIRST 2 HOURS)
For the remainder of the
first 2 hours after surfacing
,
information will continue to be displayed as Surface Mode
(Fig. 73) and you will have full access to other modes (e.g.,
PDPS, Fly, Desat, Log, Set, etc.).
To activate the Backlight -
Press the Right (Select) button.
To access the Pre Dive Planning Sequence -
(Also refer to page 46)
Press the Left (Advance) button
1 time
(while in Surface
Mode).
Press and release the Right (Select) button to advance
through the sequence of available 'adjusted' depths and
times one screen at a time.
The unit will revert to Surface Mode after 2 minutes, unless
the Left (Advance) button is pressed to access the Fly
Mode.
The Pre Dive Planning Sequence now shows
adjusted
No
Decompression Limits (Fig. 74) based on residual nitrogen
and accumulated oxygen calculated to be remaining from the
previous dives.
Fig. 73 - Surface Mode (>10 min)
Fig. 74 - Adjusted NDLs
ATR
O
2
N
2
ATR
FEET
O
2
N
2
