71

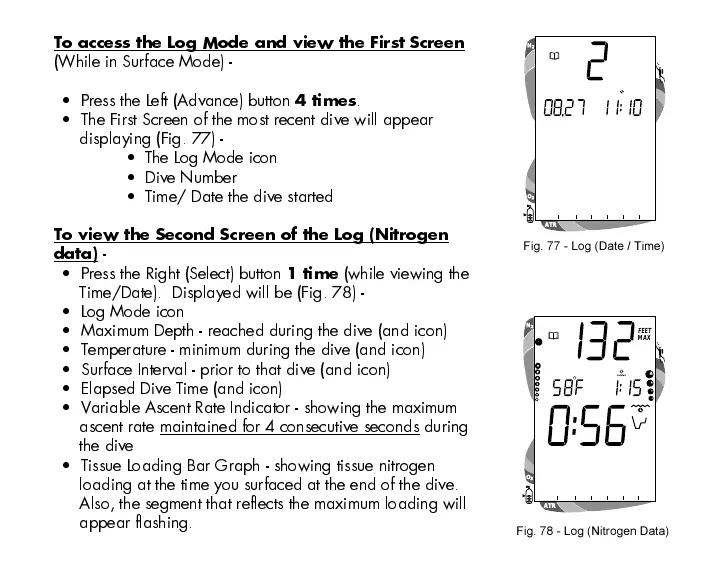

To access the Log Mode and view the First Screen
(While in Surface Mode) -
Press the Left (Advance) button
4 times
.
The First Screen of the most recent dive will appear
displaying (Fig. 77) -
The Log Mode icon
Dive Number
Time/ Date the dive started
To view the Second Screen of the Log (Nitrogen
data)
-
Press the Right (Select) button
1 time
(while viewing the
Time/Date). Displayed will be (Fig. 78) -
Log Mode icon
Maximum Depth - reached during the dive (and icon)
Temperature - minimum during the dive (and icon)
Surface Interval - prior to that dive (and icon)
Elapsed Dive Time (and icon)
Variable Ascent Rate Indicator - showing the maximum
ascent rate maintained for 4 consecutive seconds during
the dive
Tissue Loading Bar Graph - showing tissue nitrogen
loading at the time you surfaced at the end of the dive.
Also, the segment that reflects the maximum loading will
appear flashing.
Fig. 78 - Log (Nitrogen Data)
Fig. 77 - Log (Date / Time)
