77
DEMO
ATR
O
2
DEMO
ATR
O
2

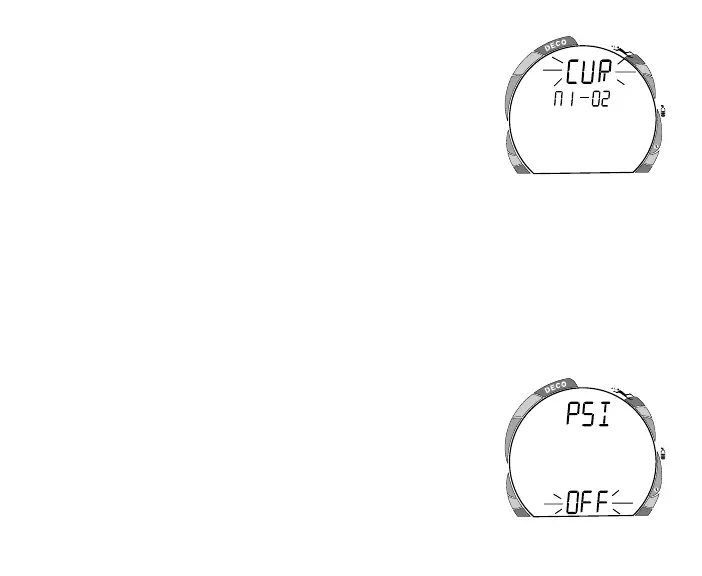

Fig. 96 - Set Demo
Calibration
Fig. 97 - Set Pressure
• Press and release the Side (Select) button to toggle between
Gauge ON and OFF.
• Press and release the Front (Advance) button to accept the
setting and advance to DEMO: NI-O2 with CUR (or NEW)
flashing (Fig. 96).
• When set for NEW, calculations are based on zero residual
nitrogen and oxygen loading (a clean dive).
• When set for CUR, calculations take into consideration any
residual nitrogen and oxygen remaining from previous
'actual' dives.
• Subsequent (repetitive) Simulated dives do not take into
consideration previous Simulated dives.
• Press and release the Side (Select) button to toggle between
NEW and CUR.
• Press and release the Front (Advance) button to accept the
setting and advance to DEMO: PSI (or bAr) with OFF,
CYL, 3000 PSI (206.5 BAR), or 4000 PSI (275.5 BAR)
flashing (Fig. 97).
• When set for OFF, no calculations are made and no
displays appear relating to Tank Pressure.
• When set for CYL, Air Time Remaining is calculated based
upon actual Pressure of the Tank that the VT Pro is con-
nected to.
• When set for a numerical value, calculations will be based
upon a starting Tank Pressure of that value.
